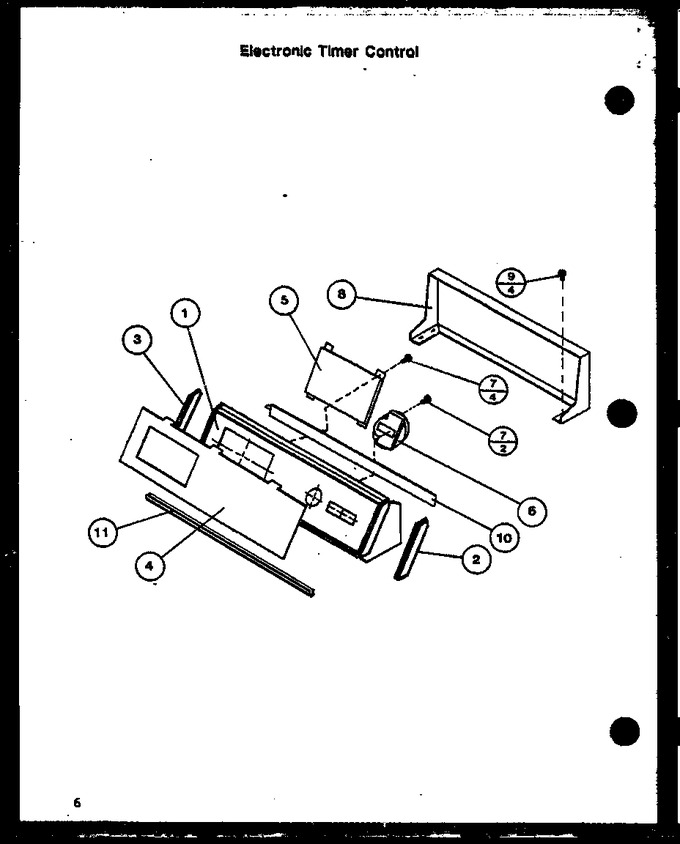

01 - Electronic Timer Control
02 - Page 3
03 - Page 4
04 - Page 5
05 - Page 6
06 - Page 7
07 - Power Cord
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 32956 | Hood,control-white |
|
- | |||||
| 2 | 32961 | Cap,end-r.h.-wht W/slv |
|
- | |||||
| 3 | 32960 | Cap,end-l.h.-wht W/slv |
|
- | |||||
| 4 | 32957 | Panel,graphic-amana |
|
- | |||||
| 5 | 32959 | Electronic Control |
|
- | |||||
| 6 | 32958 | Switch,pressure-slide |
|
- | |||||
| 7 | 31260 | Screw, No.8 X 3/8 Ind H |
|
$ 2.68 | |||||
| 8 | 33620 | Panel, Rear |
|
- | |||||
| 9 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 10 | 31660 | Trim,top-amana |
|
- | |||||
| 11 | 31661 | Trim,bottom-amana |
|
- |
