SELECT A DIAGRAM

01 - Cover

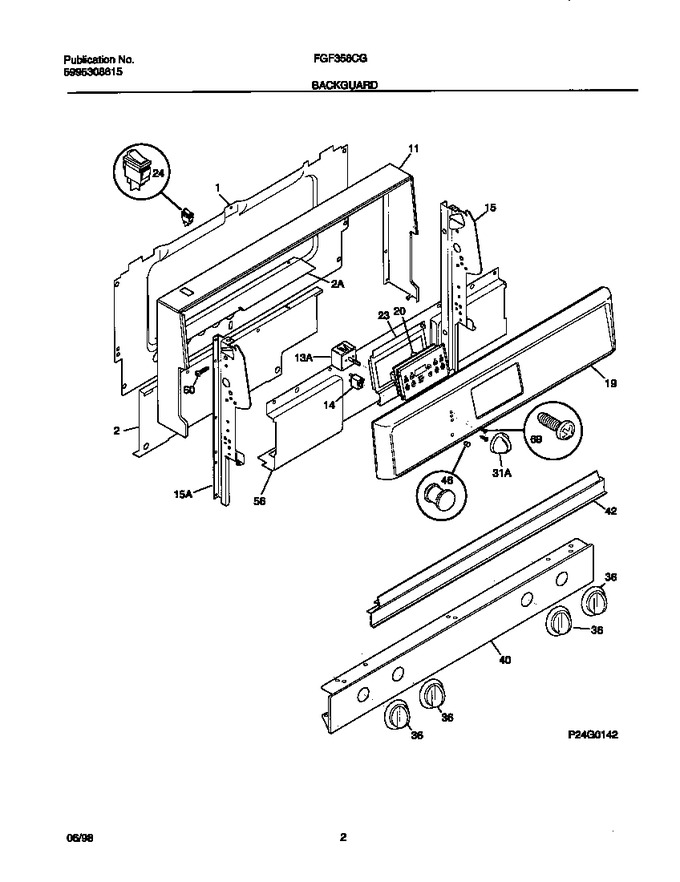

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053802		Shield-backguard, Inner/top		Appelez-nous	-
11	316083722		Trim-wrapper Gas White W/hole,textured ,white		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone, (2)   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100524		Panel-control, Metal,white		Appelez-nous	-
20	316101000		Clock/timer, Electronic		Appelez-nous	-
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
31	316095601		Knob-warmer, White				$ 23.78
36	316109503		Knob-top Valve Wht,white		Appelez-nous	-
40	316086822		Panel-manifold		Appelez-nous	-
42	316055201		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*71560	316002169		Wiring Diagram		Appelez-nous	-
*71561	316002989		Instructions,installation		Appelez-nous	-
*71562	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*71563	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*71564	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*71565	316071902		Gasket-edge		Appelez-nous	-
*71566	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
*71567	316101502		Overlay-clock				$ 108.15

    View Diagram in Separate Window       Print Part List
