SELECT A DIAGRAM
01 - Base & Cavity (mod62)
02 - Body-upper

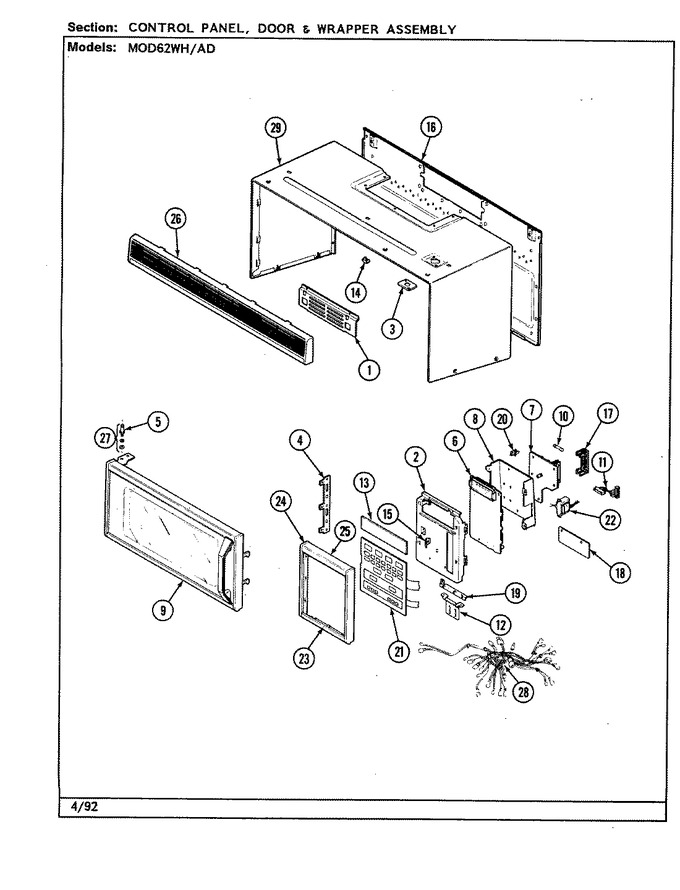

03 - Control Panel/door/wrapper (mod62)
04 - Control Panel/top Assembly/body-lower
05 - Door/drawer
06 - Gas Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2080-0003 | Damper | 01 |
|
- | ||||
| 2 | 2145-0051 | Bracket, Control Panel | 01 |
|
- | ||||
| 3 | 2145-0043 | Bracket, Cord | 01 |
|
- | ||||
| 4 | 2145-0045 | Bracket, Panel | 01 |
|
- | ||||
| 5 | 3005-0112 | Bolt | 01 |
|
- | ||||
| 6 | 2125-0004 | Control - Display | 01 |
|
- | ||||
| 7 | 2125-0005 | Board | 01 |
|
- | ||||
| 8 | 2275-0028 | Cover, Control Panel | 01 |
|
- | ||||
| 9 | 2325-0009 | Door Assy. | 01 |
|
- | ||||
| 10 | Y01050005 | Fuse 15a 125v | 01 |
|
- | ||||
| 11 | 2512-0001 | Harness | 01 |
|
- | ||||
| 12 | 2520-0010 | Hinge Assembly | 01 |
|
- | ||||
| 13 | 2655-0007 | Lens | 01 |
|
- | ||||
| 14 | 2735-0024 | Nut | 01 |
|
- | ||||
| 15 | 2845-0022 | Plate, Ground | 01 |
|
- | ||||
| 16 | 2845-0021 | Plate, Mounting | 01 |
|
- | ||||
| 17 | 3030-0002 | Shield, Pcb | 01 |
|
- | ||||
| 18 | 3030-0008 | Shield, Condenser | 01 |
|
- | ||||
| 19 | 3130-0016 | Support | 01 |
|
- | ||||
| 20 | 3065-0007 | Spacer Pcb | 01 |
|
- | ||||
| 21 | 05200133 | Switch, Membrane | 01 |
|
- | ||||
| 22 | 3215-0014 | Transformer | 01 |
|
- | ||||
| 23 | 3230-0074 | Control Trim Btm | 01 |
|
- | ||||
| 24 | 05200005 | Control Panel | 01 |
|
- | ||||
| 25 | 3230-0073 | Control Trim Top | 01 |
|
- | ||||
| 26 | 3265-0007 | Vent | 01 |
|
- | ||||
| 26 | 3005-0111 | Screw | 01 |
|
- | ||||
| 27 | 3280-0040 | Washer | 01 |
|
- | ||||
| 28 | 05200002 | Wiring Harness | 01 |
|
- | ||||
| 29 | 05200003 | Outer Case Wht | 01 |
|
- |
