Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131920 Trim Manifold Appelez-nous -
2 3131695 Knob-top Valve (4) Appelez-nous -
3 3934009 Main Top-almond Appelez-nous -
4 618T038P05 Rod, Main Top Support Appelez-nous -
5 3131286 Brkt Main Top Hinge-lh Appelez-nous -
6 3131287 Brkt Main Top Hinge-rh Appelez-nous -
7 3051354 Trim, Main Top, Lh Appelez-nous -
8 3051355 Trim, Main Top (rh) Appelez-nous -
9 3018432 Grate-top (4) Appelez-nous -
10 3131299 Pan-burner (4) Appelez-nous -
11 3131891 Glass Trim Appelez-nous -
12 3131441 Dial-top Valve\(4) Appelez-nous -
13 3131896 Cap Manifold Trim Lh Appelez-nous -
14 3131890 Cap Manifold Trim Rh Appelez-nous -
*15041 612T124P01 Retainer - Wire Appelez-nous -

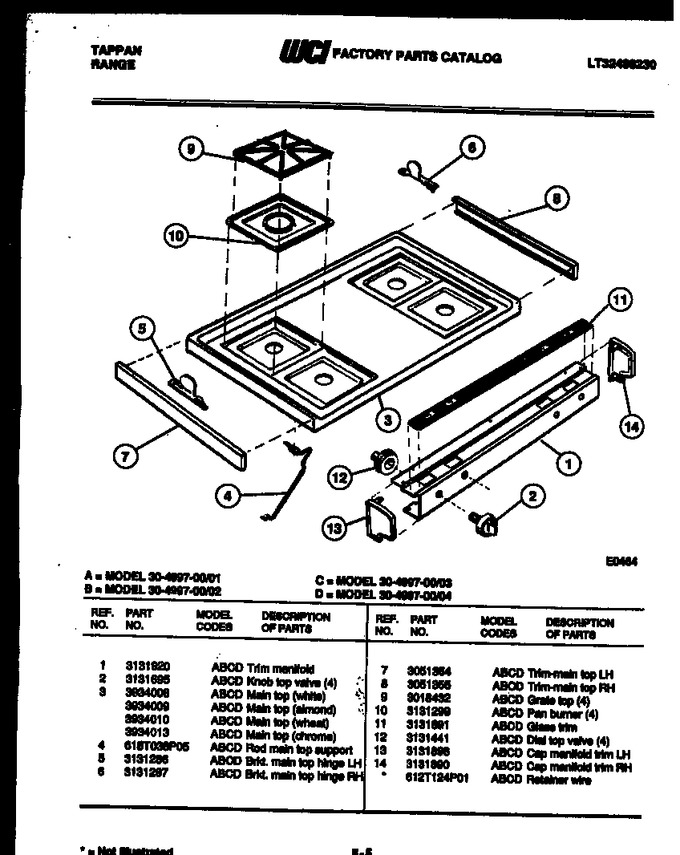

    View Diagram in Separate Window     Print Icon   Print Part List
