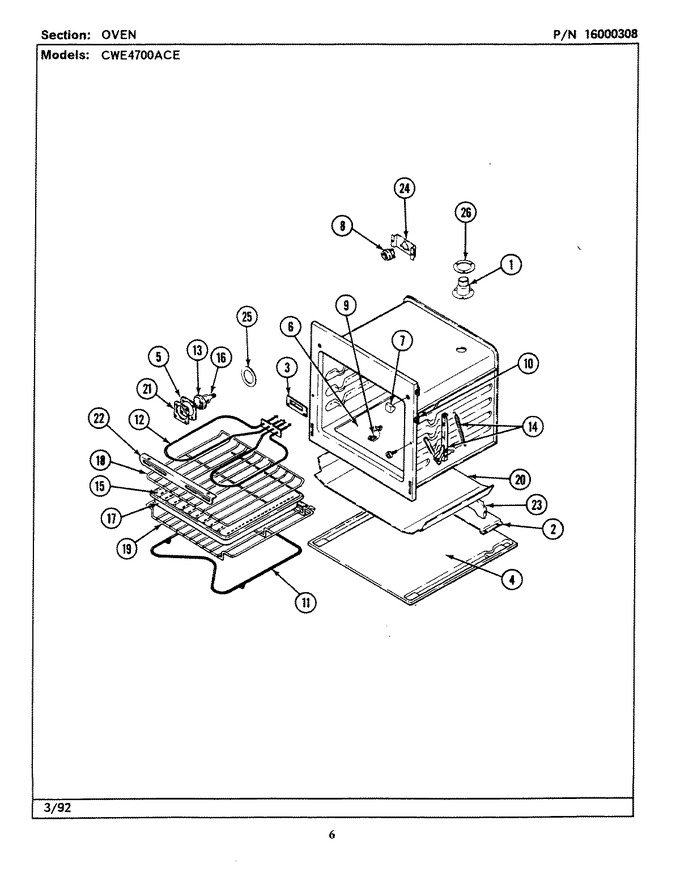

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P018-60		Catalyst Burner	04	Appelez-nous	-
1	7101P287-60		Screw, Metal Grounding	04			$ 12.03
2	3601F005-80		Baffle, Base	04	Appelez-nous	-
3	7201P003-60		Gasket, Element	04	Appelez-nous	-
4	4003F011-80		Base, Wall Oven	04	Appelez-nous	-
5	7201P015-60		Gasket, Lamp Retainer	04	Appelez-nous	-
6	2205F003-19		Bottom, Oven	04	Appelez-nous	-
7	8003P009-60		Bumper, Door (square)	04	Appelez-nous	-
8	7408P002-60		Receptacle, Lamp	04	Appelez-nous	-
9	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	04		Immediately	$ 11.07
10	7112P020-60		Clip, Oven Front	04	Appelez-nous	-
11	WPY04000066		Element, Bake   (Replaces: 7406P075-60)	04		Immediately	$ 70.53
12	WPY04000048		Element, Broil   (Replaces: 7406P076-60)	04			$ 160.58
13	7902P057-60		Glass, Lamp Guard	04	Appelez-nous	-
14	7106A019-60		Hinge, Upper	04	Appelez-nous	-
15	4396923		Insert Pan   (Replaces: 3413F012-19)	04		Immediately	$ 52.04
16	4001W012-51		Housing Lamp	04	Appelez-nous	-
16	40A15		Bulb, Oven   (Replaces: 7407P026-60)	04		Immediately	$ 1.98
16	7002P094-60		Insulation, Lamp Housing	04	Appelez-nous	-
17	4396923		Pan, Broil   (Replaces: 3401F015-23)	04		Immediately	$ 52.04
18	7801P005-60		Rack	04	Appelez-nous	-
19	7801P007-60		Rack, Offset	04	Appelez-nous	-
20	3804W034-51		Retainer, Bottom	04	Appelez-nous	-
20	7002P007-60		Insulation, Botton	04	Appelez-nous	-
21	3804F011-45		Retainer	04	Appelez-nous	-
22	3807F176-15		Support, Broil Element	04	Appelez-nous	-
23	3807F137-80		Support	04	Appelez-nous	-
24	3801F024-51		Bracket	04	Appelez-nous	-
25	7201P014-60		Gasket, Housing	04	Appelez-nous	-
26	7201P016-60		Gasket	04	Appelez-nous	-
