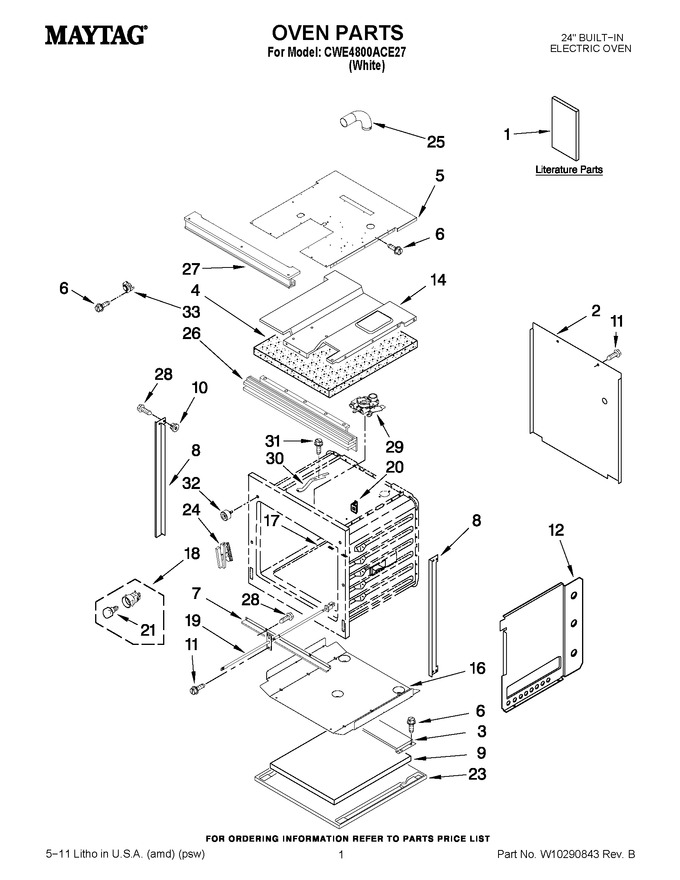

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 1 | W10203502 | Owners Manual |
|
- | |||||
| 1 | W10196374 | Diagram, Wiring |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10203506 | Installation Instructions |
|
- | |||||
| 2 | 4002F121-51 | Back, Main |
|
- | |||||
| 3 | 3601F005-61 | Baffle, Base |
|
- | |||||
| 4 | 7002P153-60 | Insulation (top & Rear) |
|
- | |||||
| 5 | W10214296 | Cover, Box |
|
- | |||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 7 | 7754P006-60 | Extrusion, Bottom |
|
- | |||||
| 8 | 7750P150-60 | Extrusion, Side (right) |
|
- | |||||
| 8 | 7750P151-60 | Extrusion, Side (left) |
|
- | |||||
| 9 | 7002P163-60 | Insulation (bottom) |
|
- | |||||
| 10 | WP7103P114-60 | Nut, Snap (Replaces: 7103P039-60) |
|
$ 9.89 | |||||
| 11 | 7101P287-60 | Screw |
|
$ 12.03 | |||||
| 12 | 2618F150-51 | Panel, Side (left) |
|
- | |||||
| 12 | 2618F149-51 | Panel, Side (right) |
|
- | |||||
| 14 | 3804F118-51 | Retainer, Top |
|
- | |||||
| 16 | 3804F104-51 | Retainer, Bottom |
|
- | |||||
| 17 | 2205F003-19 | Bottom, Oven |
|
- | |||||
| 18 | WP74011278 | Receptacle, Lamp (Replaces: 7407P181-60) |
|
$ 101.56 | |||||
| 19 | WP7430P044-60 | Sensor, Oven (Replaces: 7430P044-60) |
|
Immediately | $ 158.35 | ||||
| 20 | 7112P020-60 | Clip, Oven Front |
|
- | |||||
| 21 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 23 | 4003F049-80 | Base, Chassis |
|
- | |||||
| 24 | 74001984 | Hinge (Replaces: 7106P063-60) |
|
$ 126.36 | |||||
| 25 | 8026P070-60 | Tube, Vent |
|
- | |||||
| 26 | 7756P167-60 | Extrusion, Vent |
|
- | |||||
| 27 | 7756P116-60 | Extrusion, Top Front |
|
- | |||||
| 28 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 29 | 8002P072-60 | Latch Assembly |
|
$ 306.52 | |||||
| 30 | 8009P054-60 | Lever, Latch |
|
$ 40.80 | |||||
| 31 | WP4159193 | Screw, Lever Latch (Replaces: 7101P115-60) |
|
$ 4.29 | |||||
| 32 | W10105790 | Bumper, Door |
|
$ 6.35 | |||||
| 33 | 7403P063-60 | Switch, High Limit |
|
$ 156.41 |
