SELECT A DIAGRAM

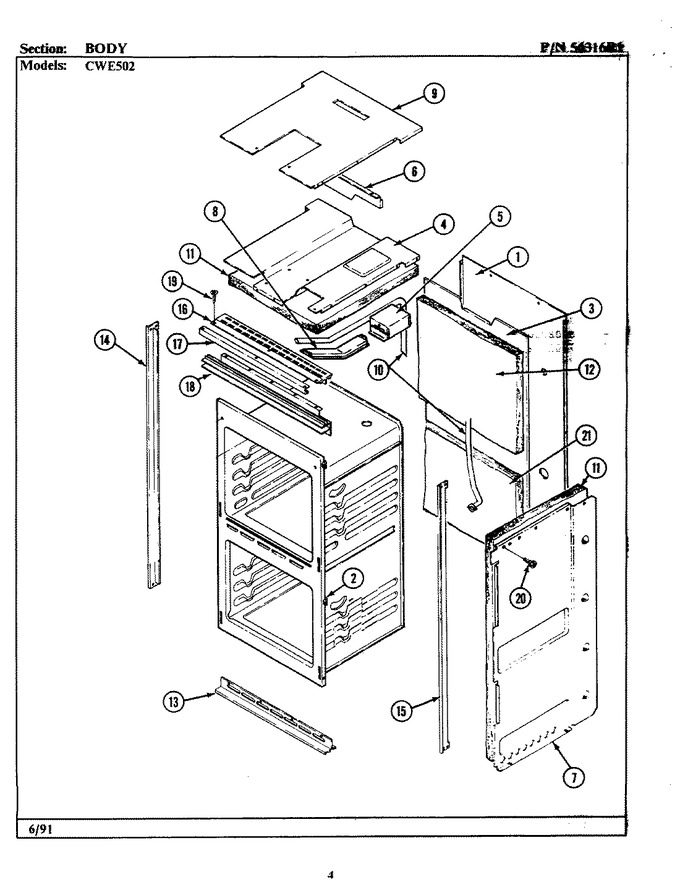

01 - Body (cwe502)


02 - Control Panel (cwe502, Cwe550)


03 - Door-lower (cwe502, Cwe550)


04 - Door-upper (cwe502)


05 - Oven (cwe502, Cwe550)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F143-51		Back, Main	00	Appelez-nous	-
2	7112P020-60		Clip, Oven Front	00	Appelez-nous	-
3	3804F101-51		Retainer, Rear	00	Appelez-nous	-
4	3804F053-51		Retainer,top	00	Appelez-nous	-
5	4006W046-15		Box, Vent	00	Appelez-nous	-
6	3604F101-80		Shield, Air	00	Appelez-nous	-
7	2618F056-51		Panel, Side-lt	00	Appelez-nous	-
7	2618F055-51		Panel, Side Right	00	Appelez-nous	-
8	3818W002-15		Channel, Vent Assembly	00	Appelez-nous	-
9	4005F202-51		Cover, Box	00	Appelez-nous	-
10	8026P014-60		Tube, Oven Vent	00	Appelez-nous	-
11	7002P107-60		Insulation, Wrapper	00	Appelez-nous	-
12	7002P111-60		Insulation, Top & Back	00	Appelez-nous	-
13	7706P075-60		Extrusion, Bottom (chr)	00	Appelez-nous	-
14	7706P076-60		Extrusion, Trim	00	Appelez-nous	-
14	7750P018-60		Extrusion	04	Appelez-nous	-
14	7750P033-60		Extrusion, Side-l	05	Appelez-nous	-
15	7706P077-60		Extrusion, Trim	00	Appelez-nous	-
15	7750P019-60		Extrusion	04	Appelez-nous	-
15	7750P034-60		Extrusion, Side-r	05	Appelez-nous	-
16	7706P078-60		Extrusion, Top (wht)	00	Appelez-nous	-
17	7706P198-60		Extrusion, Top Front	00	Appelez-nous	-
18	7756P025-60		Extension Vent	04	Appelez-nous	-
18	7706P204-60		Extrusion, Vent	00	Appelez-nous	-
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	00		Immediately	$ 12.62
19	7103P051-60		Nut, Snap	00	Appelez-nous	-
19	7103P040-60		Nut, Snap (wht)	00	Appelez-nous	-
19	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	00			$ 9.89
20	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
21	7002P006-60		Insulation, Bottom	00	Appelez-nous	-
