View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Internal Controls
06 - Oven
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

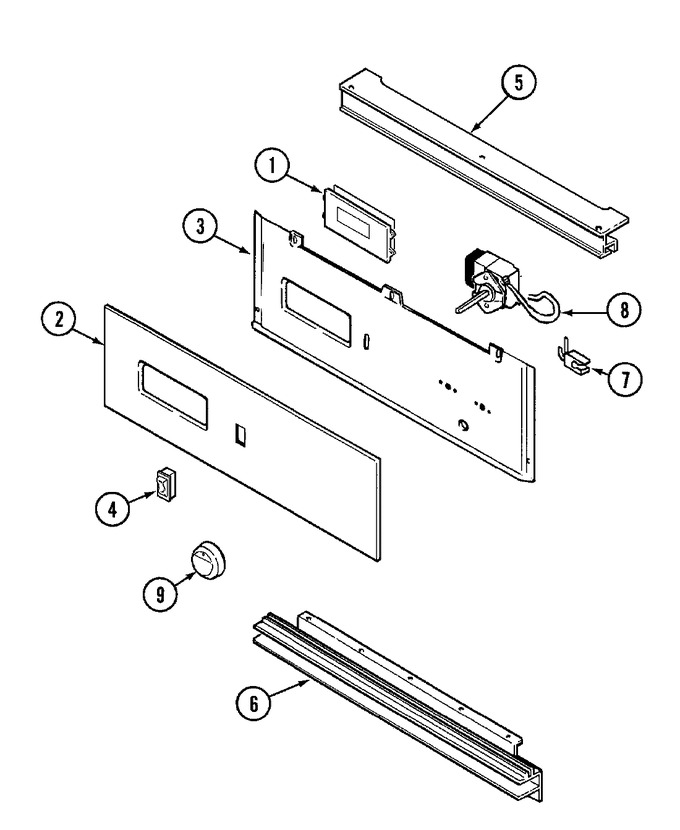

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001014 | Clock | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74001214 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 8010P050-60 | Felt, Disc | 10 |
|
- | ||||
| 3 | 3605F195-80 | Plate, Backing | 10 |
|
- | ||||
| 4 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 5 | 74001854 | Extrusion, Top Front (blk) | 10 |
|
- | ||||
| 5 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 6 | 7756P071-60 | Extrusion, Vent | 10 |
|
- | ||||
| 6 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 7 | WP74004153 | Light, Indicator (Replaces: 7407P101-60) | 10 |
|
Immediately | $ 8.02 | |||
| 8 | 7404P042-60 | Thermostat, Lower | 10 |
|
- | ||||
| 8 | 7101P279-60 | Screw W/washer | 10 |
|
- | ||||
| 9 | 74001412 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| NI | 74001016 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 7101P082-60 | Screw | 10 |
|
- | ||||
| NI | 74001015 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
