01 - Body (cwe5500ace)
02 - Control Panel (cwe4700ace, Cwe5500ace)

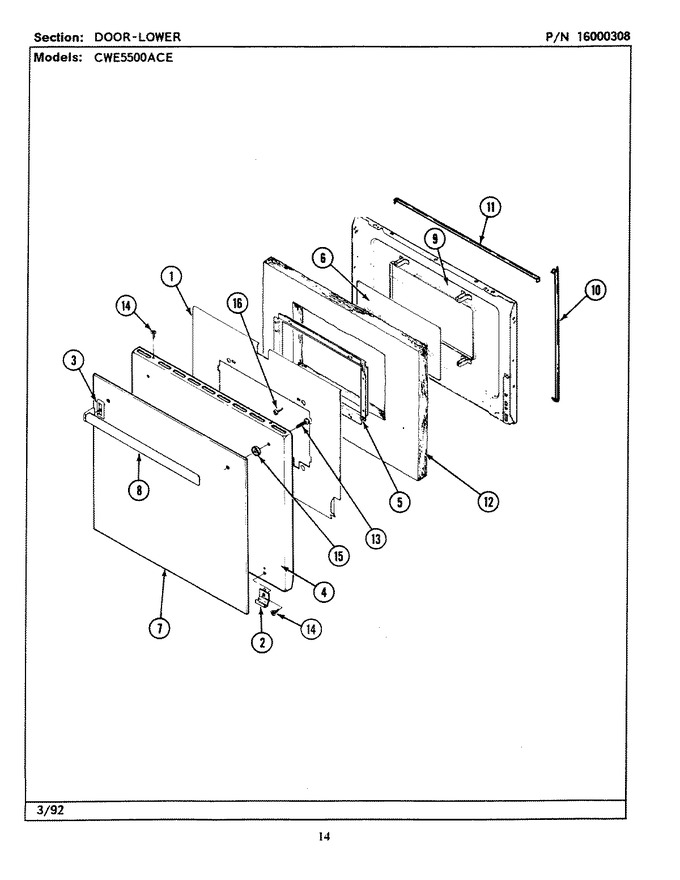

03 - Door-lower (cwe5500ace)
04 - Door-upper (cwe5500ace)
05 - Oven (cwe5500ace)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door | 04 |
|
- | ||||
| 2 | 3819F010-71 | Clip,glass Retainer (wht) | 04 |
|
- | ||||
| 3 | 8010P070-60 | Spacer, Handle (white) | 04 |
|
- | ||||
| 4 | 2401F104-71 | Panel, Door (wht) | 04 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 04 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 04 |
|
- | ||||
| 7 | 7902P330-60 | Glass, Door Lower | 04 |
|
- | ||||
| 8 | 7701P095-60 | Handle, Door | 04 |
|
- | ||||
| 9 | 2402W132-19 | Lining, Door | 04 |
|
- | ||||
| 10 | 7212P007-60 | Seal, Door (vertical) | 04 |
|
$ 47.10 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 04 |
|
$ 105.81 | ||||
| 12 | 7002P019-60 | Insulation, Door Lower | 04 |
|
- | ||||
| 13 | 7101P089-60 | Screw, Door Handle | 04 |
|
- | ||||
| 14 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 04 |
|
Immediately | $ 12.62 | |||
| 15 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 04 |
|
$ 13.08 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 04 |
|
Immediately | $ 6.85 |
