SELECT A DIAGRAM

01 - Cabinet Parts

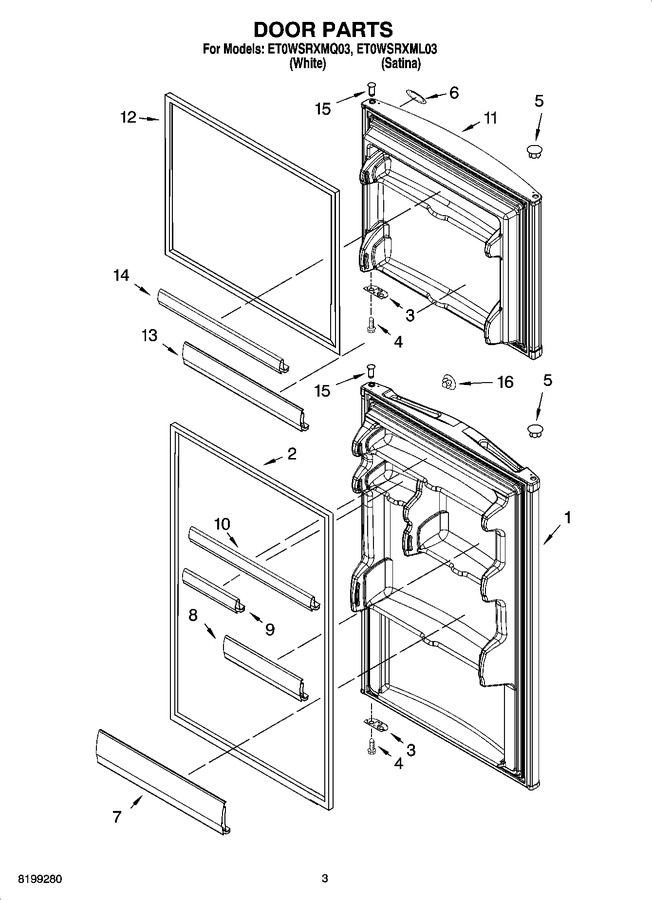

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2262204W		Refrigerator Door (includes Illus. 2,3,4 5 & 15) (white)				$ 470.65
1	2262200S		Refrigerator Door (includes Illus. 2,3,4 5 & 15) (satina)				$ 289.88
2	2211227		Gasket, Door (rc) (mist Beige)		Appelez-nous	-
2	2219341		Gasket, Door (rc) (black)		Appelez-nous	-
3	2211124		Bracket, Door Stop		Appelez-nous	-
4	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
5	2211250B		Hole Plug (4) (black)		Appelez-nous	-
5	2211250W		Hole Plug (4) (white)		Appelez-nous	-
6	WP2213265		Nameplate   (Replaces: 2262180)			Immediately	$ 79.87
7	2219143		Trim, Door Shelf (bottom)		Appelez-nous	-
8	WPW10304911		Trim, Door Shelf (middle-right)   (Replaces: 2219146)				$ 93.21
9	WPW10160952		Trim, Door Shelf (middle-left)   (Replaces: 2219149)				$ 69.87
10	2219148		Trim, Door Shelf (top)				$ 65.30
12	WP2265773		Gasket, Door (fc) (black)   (Replaces: 2219343)				$ 247.25
12	2211147		Gasket, Door (fc) (mist Beige)		Appelez-nous	-
13	2219144		Trim, Door Shelf (bottom)		Appelez-nous	-
14	2219150		Trim, Door Shelf (top)				$ 142.57
15	2210973		Thimble		Appelez-nous	-
16	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.66

    View Diagram in Separate Window       Print Part List
