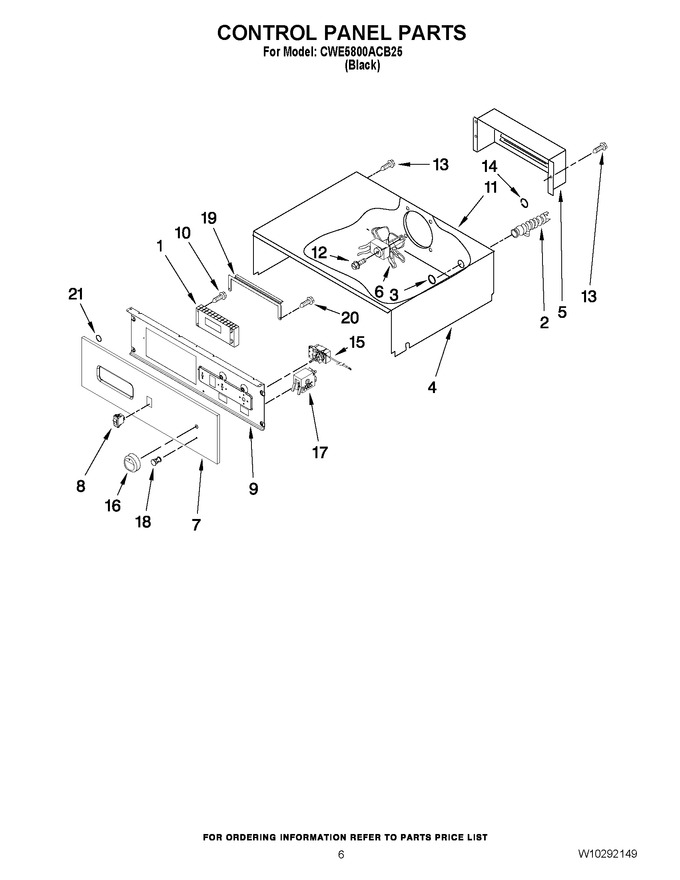

SELECT A DIAGRAM

01 - Oven Parts


02 - Lower Oven Door Parts


03 - Upper Oven Door Parts


04 - Internal Oven Parts


05 - Control Panel Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10201915		Clock   (Replaces: W10201915)				$ 246.29
2	5700P365-60		Conduit, Flexible		Appelez-nous	-
3	7417P017-60		Connector, Cable				$ 9.81
4	W10214294		Cover, Wire		Appelez-nous	-
5	4005F262-51		Cover, Fan		Appelez-nous	-
6	7427P031-60		Assembly, Fan				$ 297.03
7	W10196422		Panel, Control		Appelez-nous	-
8	7403P067-60		Switch, Rocker   (Replaces: 7403P841-60)				$ 91.35
9	W10196355		Plate, Backing		Appelez-nous	-
10	WP59002061		Screw   (Replaces: 7101P077-60)				$ 6.98
11	3605F164-51		Plate, Conduit		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
13	7101P287-60		Screw				$ 12.03
14	8008P004-60		Grommet		Appelez-nous	-
15	7404P042-60		Thermostat, Lower Oven		Appelez-nous	-
16	7735P049-60		Knob, Thermostat		Appelez-nous	-
17	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.02
18	WP7730P011-60		Lens   (Replaces: 7730P011-60)				$ 5.16
19	W10249336		Bracket, Clock		Appelez-nous	-
20	W11684512		Screw   (Replaces: 7101P060-60)				$ 12.69
21	8010P050-60		Spacer, Felt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
