01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:

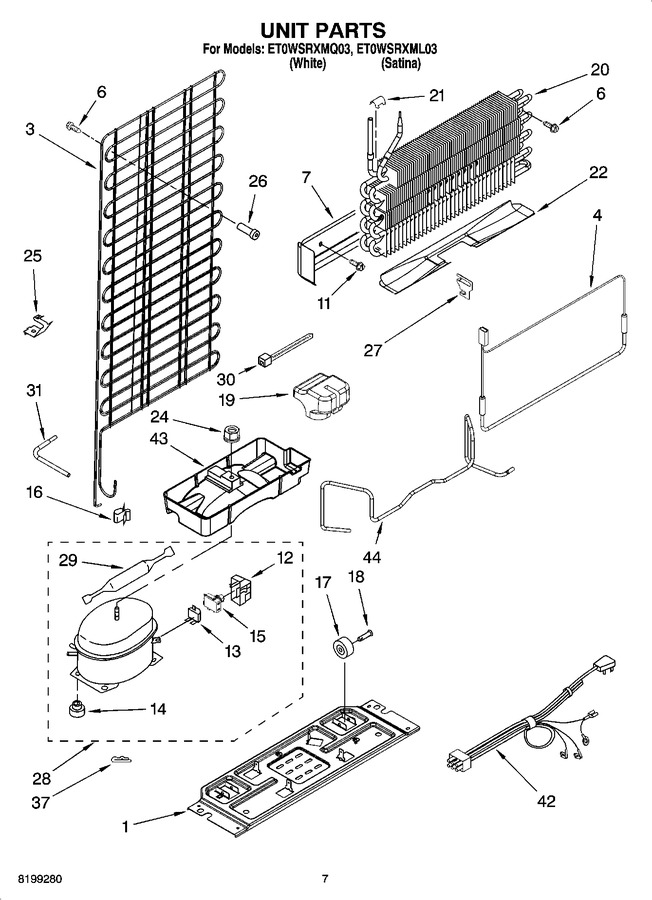

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2211011 | Support Plate, Compressor |
|
- | |||||
| 3 | 2252732 | Condenser |
|
- | |||||
| 4 | WP2210895 | Heater, Defrost (Replaces: 2210895) |
|
$ 140.47 | |||||
| 6 | 8533892 | Screw |
|
- | |||||
| 7 | 2210879 | Heat Shield |
|
- | |||||
| 11 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 81.68 | |||||
| 13 | 2264602 | Overload |
|
$ 140.02 | |||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 7.16 | |||||
| 15 | 2264603 | Start Relay |
|
$ 96.35 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2262072) |
|
Immediately | $ 16.39 | ||||
| 19 | 2210813 | Wedge, Evaporator |
|
- | |||||
| 20 | 2211094 | Evaporator Assy. |
|
$ 200.46 | |||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 22 | 2265095 | Drain Pan (Replaces: 2210835) |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 11.02 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258451 | Bracket, Condenser |
|
- | |||||
| 27 | 2211075 | Bracket |
|
- | |||||
| 28 | 2264457 | Compressor (includes Illus. 12,13,14 15 & 29) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 2201796) |
|
Immediately | $ 47.31 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 31 | 2219285 | Tube, Process |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 42 | 2264421 | Wire Assy. Unit |
|
- | |||||
| 43 | 2217957 | Evaporator Tray |
|
- | |||||
| 44 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 44 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 44 | 2262248 | Tube, Discharge |
|
- | |||||
| 44 | N/A | Following Parts Not Illustrated And Optional Parts Not Included |
|
- | |||||
| 44 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 44 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 44 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 44 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 44 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 |
