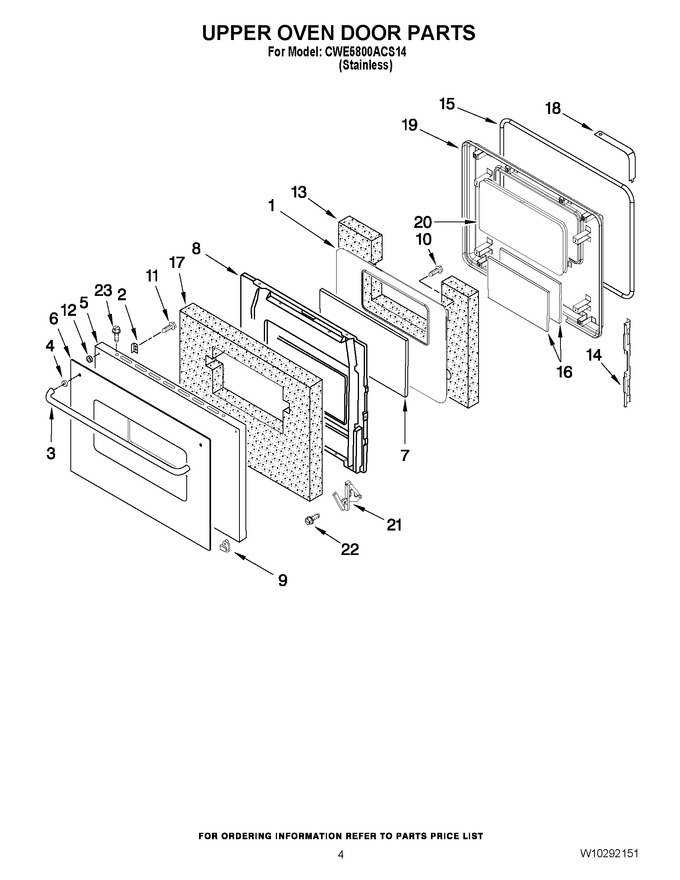

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F131-51		Baffle, Door		Appelez-nous	-
2	7112P011-60		Clip, Door Handle		Appelez-nous	-
3	WP7701P495-60		Handle, Door   (Replaces: 7701P495-60)				$ 169.48
4	8010P127-60		Spacer, Door Handle		Appelez-nous	-
5	2401F103-70		Panel, Oven Door		Appelez-nous	-
6	7922P048-60		Glass, Oven Door		Appelez-nous	-
7	7902P097-60		Glass, Inner				$ 63.87
8	2402W218-19		Lining, Door		Appelez-nous	-
9	7112P159-60		Clip, Glass Retainer		Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P356-60)			Immediately	$ 6.85
11	7101P326-60		Screw		Appelez-nous	-
12	74003986		Spacer, Nylon   (Replaces: 8010P124-60)				$ 13.08
13	7002P021-60		Insulation, Door Pad		Appelez-nous	-
14	3804F051-80		Retainer, Glass Door		Appelez-nous	-
15	7201P053-60		Gasket, Oven Door		Appelez-nous	-
16	7902P349-60		Glass, Window Inner				$ 50.56
17	7002P023-60		Insulation, Door		Appelez-nous	-
18	3804F021-45		Retainer, Door Gasket		Appelez-nous	-
19	2410W042-19		Pad, Oven Door		Appelez-nous	-
20	8002P011-60		Spacer, Window		Appelez-nous	-
21	74001984		Hinge, Door   (Replaces: 7106P063-60)				$ 126.36
22	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
23	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
NI	7201P018-60		Gasket, Window		Appelez-nous	-
NI	7002P050-60		Insulation, Window		Appelez-nous	-
NI	7706P128-60		Frame, Window		Appelez-nous	-
