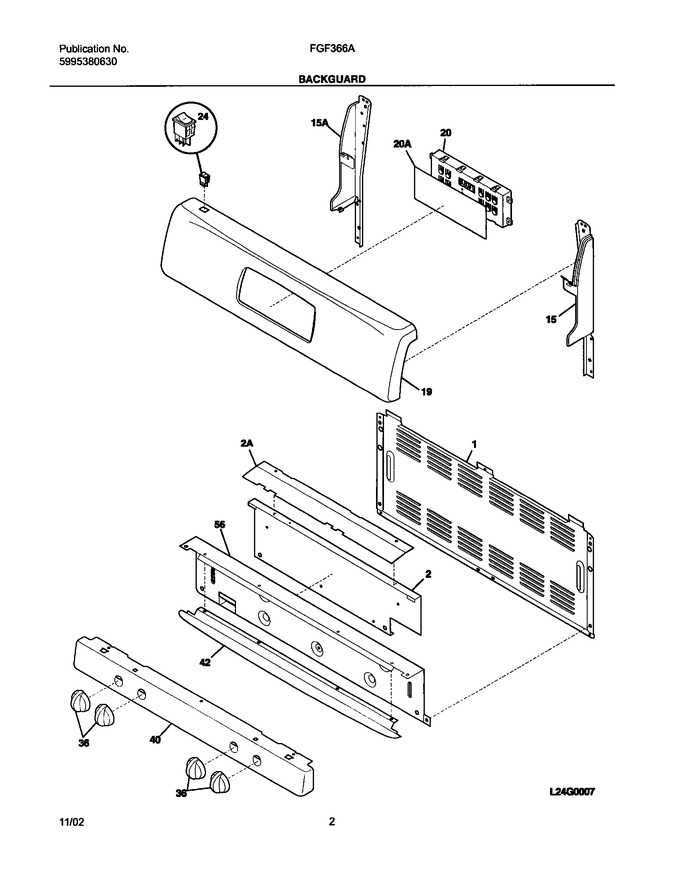

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220204		Support,backguard ,black ,rh		Appelez-nous	-
19	316232648		Panel-backguard,black				$ 279.88
36	316220002		Knob,top Valve ,black ,(4)			Immediately	$ 56.70
40	316204915		Panel,manifold ,black		Appelez-nous	-
42	316236600		Trim,extrusion ,black		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220205		Support-backguard,black ,lh		Appelez-nous	-
20A	316220805		Overlay,clock ,black				$ 49.40
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316222900		Clock/timer,electronic		Appelez-nous	-
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316246001)			Immediately	$ 11.38
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
