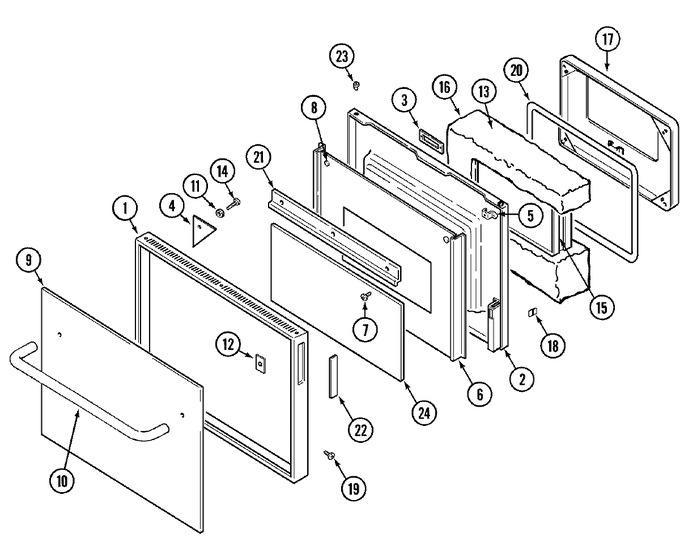

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100544 | Frame, Door (blk) | 1 |
|
- | ||||
| 2 | Y04100543 | Liner, Door | 1 |
|
- | ||||
| 3 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 3 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 4 | 704805 | Gusset----na | 1 |
|
- | ||||
| 5 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 6 | 04100542 | Baffle, Door | 1 |
|
- | ||||
| 7 | WPY706189 | Screw (blk) (Replaces: Y704238) | 1 |
|
Immediately | $ 6.47 | |||
| 8 | Y704223 | Bumper, Button | 1 |
|
- | ||||
| 9 | 04100692 | Glass, Screened | 1 |
|
- | ||||
| 10 | 71001184 | Spacer, Handle | 1 |
|
- | ||||
| 10 | 04100690 | Handle, Door (blk) | 1 |
|
- | ||||
| 11 | 701736 | Washer | 1 |
|
- | ||||
| 12 | Y704489 | Bushing | 1 |
|
- | ||||
| 13 | 701660 | Insulation, Top | 1 |
|
- | ||||
| 14 | Y707402 | Screw | 1 |
|
- | ||||
| 15 | 701648 | Window Pack | 1 |
|
- | ||||
| 16 | 04100555 | Insulation, Oven Door | 1 |
|
- | ||||
| 17 | 712011 | Plug, Oven Door Weld | 1 |
|
- | ||||
| 18 | 704487 | Clip | 1 |
|
- | ||||
| 19 | Y704488 | Screw (black) | 1 |
|
- | ||||
| 20 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 1 |
|
Immediately | $ 172.53 | |||
| 21 | Y704819 | Retainer, Glass | 1 |
|
- | ||||
| 22 | Y04100580 | Insert, Frame (blk)----na | 1 |
|
- | ||||
| 23 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 24 | Y704820 | Glass, Baffle | 1 |
|
- |
