View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Motor-cooling
02 - Body
03 - Control Panel
04 - Internal Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:

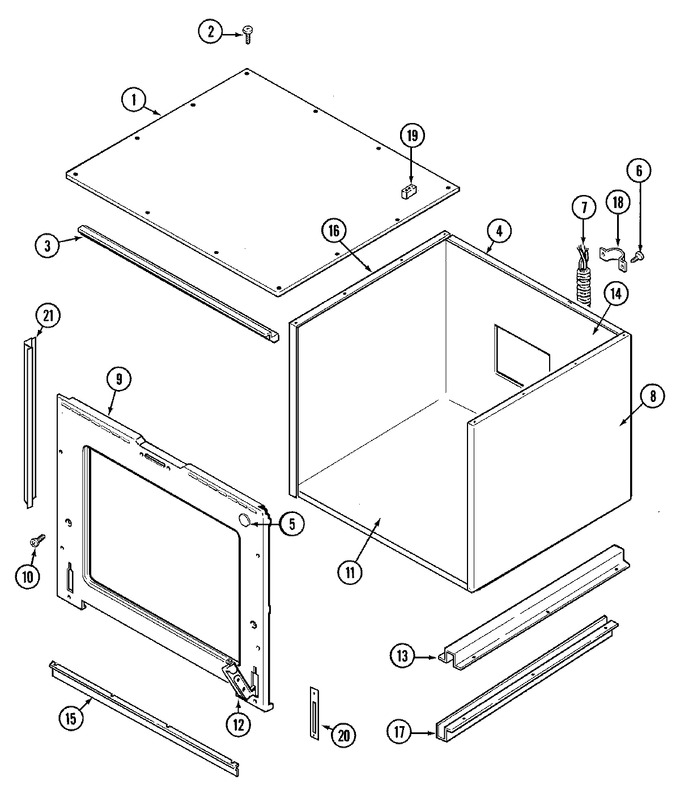

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100567 | Top, Unit (outer) | 1 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 3 | 703095 | Support, Top | 1 |
|
- | ||||
| 4 | 04100564 | Back, Outer | 1 |
|
- | ||||
| 5 | 701666 | Switch, Door | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: Y708310) | 1 |
|
Immediately | $ 6.85 | |||
| 7 | 04100615 | Cable Assy. | 1 |
|
- | ||||
| 8 | 04100558 | Panel, Side (rh) | 1 |
|
- | ||||
| 9 | 04100566 | Bracket | 1 |
|
- | ||||
| 9 | WPW10068250 | Screw (Replaces: Y700582) | 1 |
|
$ 3.66 | ||||
| 9 | 04100571 | Closure, Front | 1 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 11 | 04100562 | Panel, Bottom | 1 |
|
- | ||||
| 12 | Y703419 | Hinge | 1 |
|
- | ||||
| 13 | 04100563 | Rail, Support | 1 |
|
- | ||||
| 14 | 04100561 | Back, Inner | 1 |
|
- | ||||
| 15 | 04100551 | Trim, Oven (lwr-wht) | 1 |
|
- | ||||
| 16 | 04100557 | Panel, Side (lh) | 1 |
|
- | ||||
| 17 | 700596 | Rail, Bottom | 1 |
|
- | ||||
| 18 | DE81-08030A | Clamp, Conduit (Replaces: 701692) | 1 |
|
$ 131.01 | ||||
| 18 | Y700556 | Clip, J | 1 |
|
- | ||||
| 19 | 701704 | Outlet, Appliance | 1 |
|
- | ||||
| 20 | 04100577 | Backplate, Hinge | 1 |
|
- | ||||
| 21 | 71001456 | Trim, Oven (lt/wht) | 1 |
|
- | ||||
| 21 | 71001457 | Trim, Oven (rt/wht) | 1 |
|
- | ||||
| NI | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| NI | 702008 | Breaker (30 Amp) | 1 |
|
- | ||||
| NI | 702007 | Breaker (15 Amp) | 1 |
|
- | ||||
| NI | 704165 | Box, Breaker | 1 |
|
- |
