View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

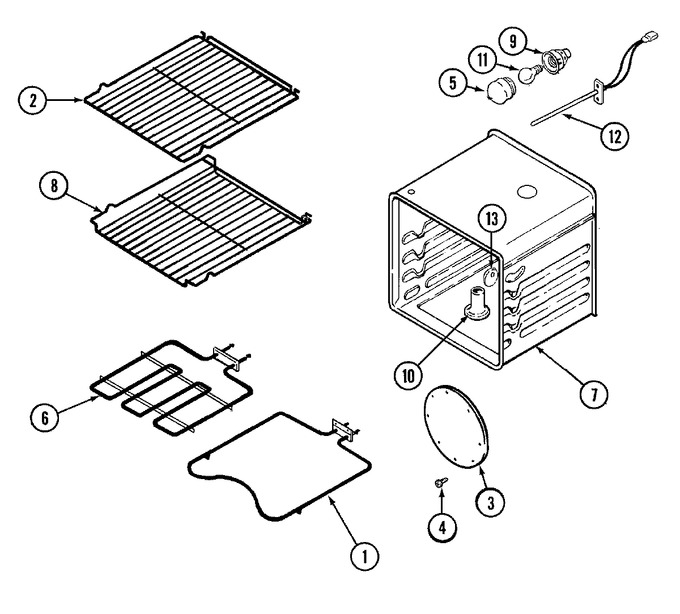

| 1 | WP7406P272-60 | Element, Bake (Replaces: 71001636) | 11 |
|
$ 158.68 | ||||
| 2 | Y704660 | Rack, Oven | 11 |
|
$ 104.03 | ||||
| 3 | 71002903 | Plate, Non-convect | 12 |
|
- | ||||
| 3 | 705343 | Plate, Non-convect | 11 |
|
- | ||||
| 4 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 | ||||
| 4 | WP7101P434-60 | Screw (Replaces: 71001394) | 11 |
|
$ 6.26 | ||||
| 5 | WP9781049 | Lens, Bulb (Replaces: 71001867) | 11 |
|
Immediately | $ 71.93 | |||
| 6 | 71001637 | Element, Broil | 11 |
|
- | ||||
| 7 | 71001978 | Oven Weld Assy. | 11 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 11 |
|
$ 6.26 | ||||
| 7 | 71003006 | Oven Weld Assy. | 12 |
|
- | ||||
| 7 | 71001403 | Washer, Alum | 11 |
|
- | ||||
| 8 | Y704662 | Rack, Oven (offset) | 11 |
|
- | ||||
| 9 | 71001866 | Receptacle, Bulb | 11 |
|
- | ||||
| 10 | 71001864 | Tube, Vent | 11 |
|
- | ||||
| 11 | Y701541 | Clip, Bulb | 11 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 11 |
|
Immediately | $ 16.80 | |||
| 12 | 12001656 | Sensor, Oven (Replaces: Y704657) | 11 |
|
Immediately | $ 39.55 | |||
| 13 | 702929 | Button, Plug | 11 |
|
- | ||||
| NI | 71001869 | Wire, Ground | 11 |
|
- |
