SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Internal Controls


05 - Oven

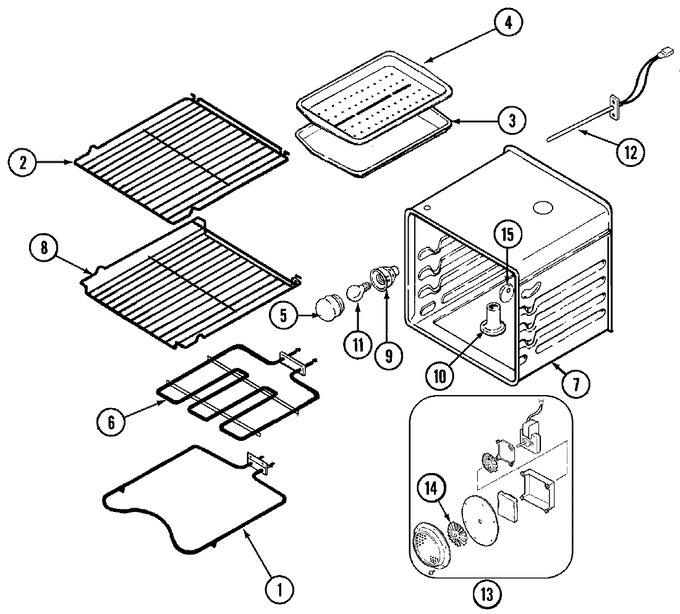

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7406P272-60		Element, Bake   (Replaces: 71001636)	11			$ 158.68
2	Y704660		Rack, Oven	11			$ 104.03
3	4396923		Pan, Broil   (Replaces: 703164)	11		Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)	11		Immediately	$ 52.04
5	WP9781049		Lens, Bulb   (Replaces: 71001867)	11		Immediately	$ 71.93
6	71001637		Element, Broil	11	Appelez-nous	-
7	71001403		Washer, Alum	11	Appelez-nous	-
7	71001978		Oven Weld Assy.	11	Appelez-nous	-
7	71003006		Oven Weld Assy.	12	Appelez-nous	-
7	WP7101P434-60		Screw   (Replaces: 71001394)	11			$ 6.26
8	Y704662		Rack, Oven (offset)	11	Appelez-nous	-
9	71001866		Receptacle, Bulb	11	Appelez-nous	-
10	71001864		Tube, Vent	11	Appelez-nous	-
11	71001170		Clip, Oven	11	Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	11		Immediately	$ 16.80
12	12001656		Sensor, Oven   (Replaces: Y704657)	11		Immediately	$ 39.55
13	71001858		Convection Mtr Assy	11			$ 148.33
13	71001947		Plate, Convection (frt)	11	Appelez-nous	-
14	71001855		Wheel, Convect Assy.	11	Appelez-nous	-
15	702929		Button, Plug	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
