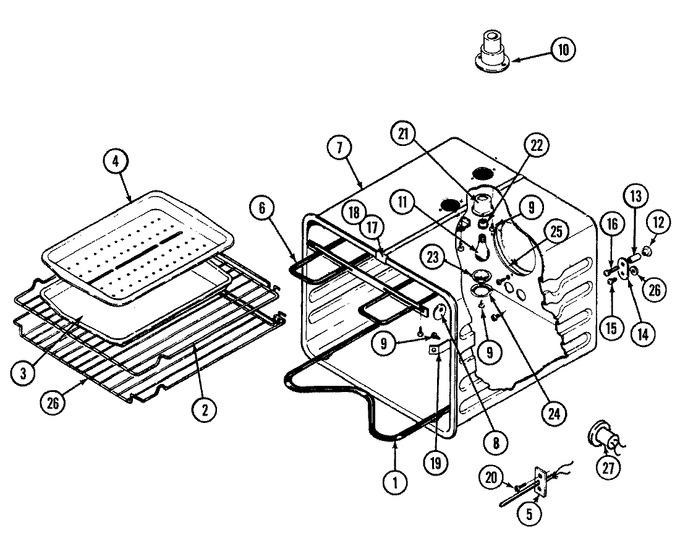

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100387 | Element, Bake | 11 |
|
- | ||||
| 1 | WPY04100020 | Element, Bake (Replaces: Y04100389) | 11 |
|
Immediately | $ 136.96 | |||
| 2 | Y704660 | Rack, Oven | 11 |
|
$ 104.03 | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 11 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 11 |
|
Immediately | $ 52.04 | |||
| 5 | 12001656 | Probe, Oven Sensor (Replaces: 12500029) | 11 |
|
Immediately | $ 39.55 | |||
| 5 | Y705342 | Cover, Sensor Hole | 11 |
|
- | ||||
| 6 | WPY04100514 | Element, Broil (Replaces: Y04100018) | 11 |
|
$ 138.97 | ||||
| 6 | WPY04100514 | Element, Broil (Replaces: Y04100514) | 11 |
|
$ 138.97 | ||||
| 7 | 04100572 | Oven Weld Assembly | 11 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 13 |
|
$ 6.26 | ||||
| 7 | 71001403 | Washer, Alum | 13 |
|
- | ||||
| 7 | 71001490 | Oven Weld Assy. | 13 |
|
- | ||||
| 8 | 712088 | Cover, Meat Probe | 11 |
|
- | ||||
| 8 | 703007 | Standoff | 11 |
|
- | ||||
| 9 | WP1163283 | Screw (Replaces: Y04100134) | 11 |
|
$ 6.47 | ||||
| 10 | 701738 | Tube, Vent | 11 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 11 |
|
Immediately | $ 16.80 | |||
| 12 | 715294 | Nut, Tee | 11 |
|
- | ||||
| 13 | 701741 | Spacer, Oven |
|
- | |||||
| 14 | 701742 | Plate, Grounding | 11 |
|
- | ||||
| 15 | WP71001171 | Screw, No.10/32 Torx (Replaces: Y04100270) | 11 |
|
$ 6.26 | ||||
| 16 | 705170 | Screw | 11 |
|
- | ||||
| 16 | 702283 | Insulation-back | 11 |
|
- | ||||
| 17 | Y702618 | Clip, Oven | 11 |
|
- | ||||
| 18 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 19 | Y701541 | Clip, Bulb | 11 |
|
- | ||||
| 20 | WP179051 | Screw (Replaces: 708764) | 11 |
|
Immediately | $ 7.16 | |||
| 21 | 704142 | Receptacle, Holder | 11 |
|
- | ||||
| 22 | Y704145 | Receptacle, Snap-in | 11 |
|
- | ||||
| 23 | Y704143 | Lens, Light | 11 |
|
- | ||||
| 24 | Y704144 | Retainer, Lens | 11 |
|
- | ||||
| 25 | 705343 | Plate, Non-convect | 11 |
|
- | ||||
| 26 | Y704662 | Rack, Oven (offset) | 11 |
|
- | ||||
| 27 | Y703356 | Nut, Hex 3/8`` | 11 |
|
- | ||||
| 27 | Y700883 | Jack, Probe | 11 |
|
- | ||||
| 27 | 04100593 | Bottom, Extrusion (wht)----na | 11 |
|
- | ||||
| 27 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 |
