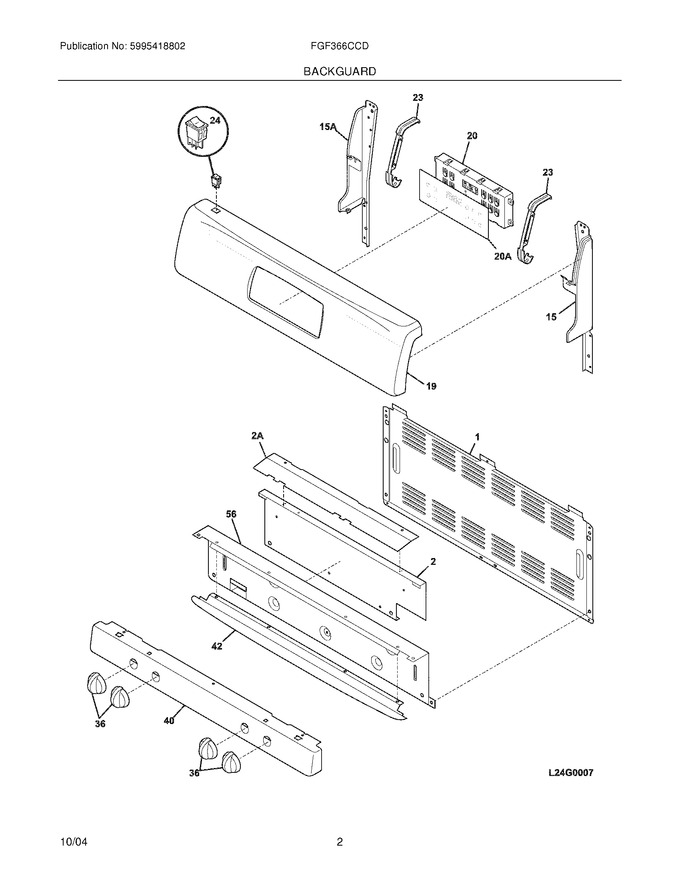

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220216		Support,backguard ,black ,rh				$ 79.85
19	316233863		Panel,backguard ,black		Appelez-nous	-
23	316220900		Bracket,clock Mtg				$ 59.43
36	316220002		Knob,top Valve ,black ,(4)			Immediately	$ 56.70
40	316204915		Panel,manifold ,black		Appelez-nous	-
42	316270600		Trim,extrusion ,black		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220217		Support,backguard ,black ,lh				$ 61.32
20A	316220805		Overlay,clock ,black ,es300				$ 49.40
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316207500		Clock/timer,electronic ,es300		Appelez-nous	-
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316246001)			Immediately	$ 11.38
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
