01 - Blower Motor-cooling
02 - Body
03 - Internal Controls
04 - Oven-upper & Lower
New Model Search:

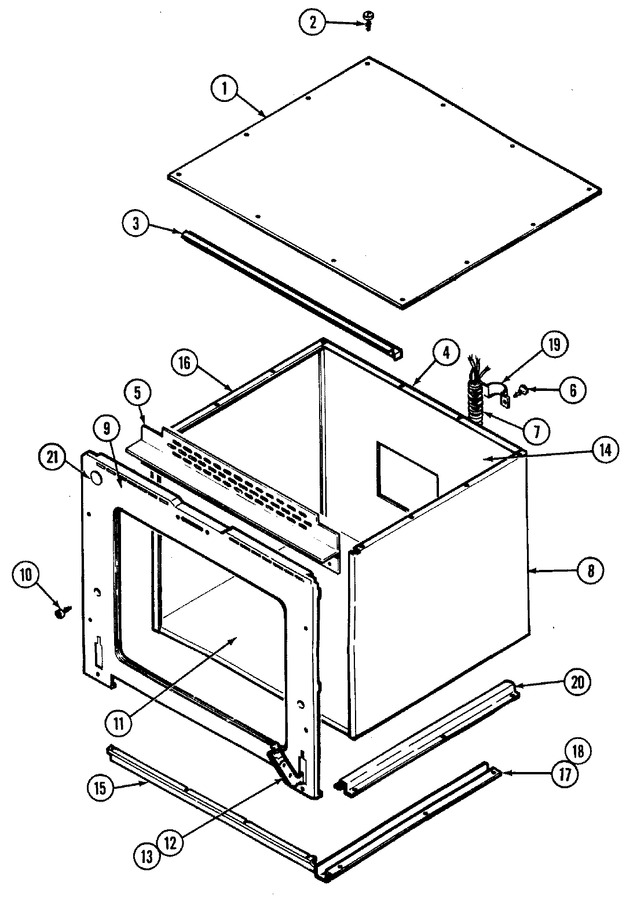

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100567 | Top, Unit (outer) | 11 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 3 | 703095 | Support, Top | 11 |
|
- | ||||
| 4 | 04100665 | Back, Outer | 11 |
|
- | ||||
| 4 | 04100666 | Back, Outer | 11 |
|
- | ||||
| 5 | 04100842 | Extrusion, Center | 11 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: Y708310) | 11 |
|
Immediately | $ 6.85 | |||
| 7 | 04100765 | Cable Assy | 11 |
|
- | ||||
| 8 | 04100558 | Panel, Side (rh) | 11 |
|
- | ||||
| 9 | 04100663 | Frt, Closure (lower) | 11 |
|
- | ||||
| 9 | 04100662 | Frt, Closure (upper) | 11 |
|
- | ||||
| 9 | 71001488 | Closure, Front (upr) | 13 |
|
- | ||||
| 9 | 04100566 | Bracket | 11 |
|
- | ||||
| 9 | 71001489 | Closure, Front (lwr) | 13 |
|
- | ||||
| 9 | WPW10068250 | Screw (Replaces: Y700582) | 11 |
|
$ 3.66 | ||||
| 10 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 04100562 | Panel, Bottom | 11 |
|
- | ||||
| 12 | 04100577 | Backplate, Hinge | 11 |
|
- | ||||
| 12 | Y04100337 | Hinge, Oven Door | 11 |
|
- | ||||
| 13 | WP3196183 | Screw (Replaces: Y701664) | 11 |
|
Immediately | $ 6.98 | |||
| 14 | 04100561 | Back, Inner | 11 |
|
- | ||||
| 15 | 71001456 | Trim, Oven (lt/wht) | 11 |
|
- | ||||
| 15 | 71001457 | Trim, Oven (rt/wht) | 11 |
|
- | ||||
| 15 | 71001462 | Trim, Oven (lt/wht) | 11 |
|
- | ||||
| 15 | 04100551 | Trim, Oven (lwr-wht) | 11 |
|
- | ||||
| 15 | 704714 | Screw, Trim | 11 |
|
- | ||||
| 15 | 71001463 | Trim, Oven (rt/wht) | 11 |
|
- | ||||
| 16 | 04100557 | Panel, Side (lh) | 11 |
|
- | ||||
| 17 | 700596 | Rail, Bottom | 11 |
|
- | ||||
| 18 | Y700556 | Clip, J | 11 |
|
- | ||||
| 19 | DE81-08030A | Clamp, Conduit (Replaces: 701692) | 11 |
|
$ 131.01 | ||||
| 19 | 702336 | Angle, Oven Support | 11 |
|
- | ||||
| 20 | 04100563 | Rail, Support | 11 |
|
- | ||||
| 21 | 702929 | Button, Plug | 11 |
|
- | ||||
| NI | 04100668 | Panel, Inner Top | 11 |
|
- | ||||
| NI | 04100766 | Relay | 11 |
|
- | ||||
| NI | 04100670 | Shield, Capillary | 11 |
|
- | ||||
| NI | 701666 | Switch, Door | 11 |
|
- | ||||
| NI | Y04100669 | Support (ctr) | 11 |
|
- |
