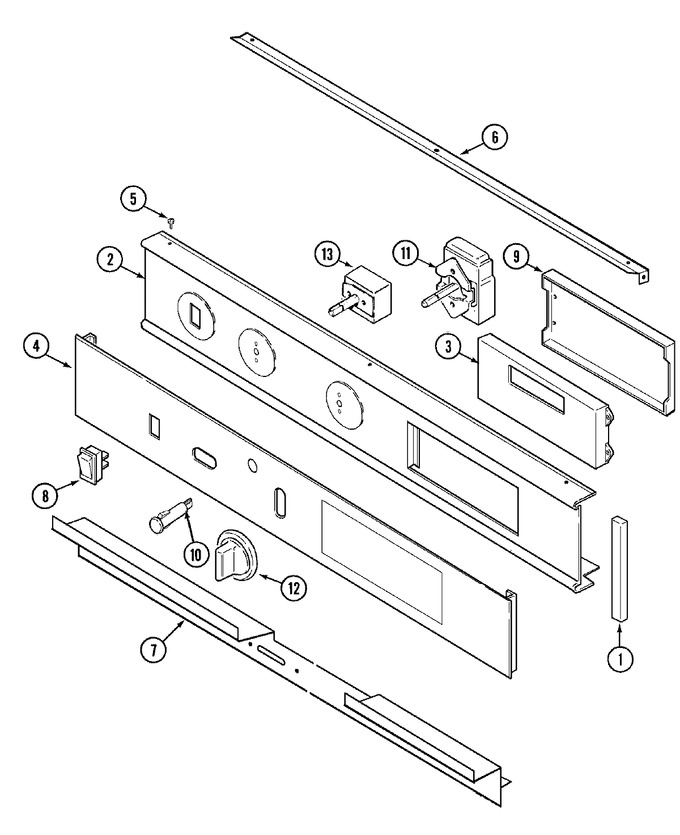

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002341 | Trim, Control Panel (wht) | 11 |
|
- | ||||
| 2 | 71002338 | Panel, Control (wht) | 11 |
|
- | ||||
| 3 | 71002123 | Clock | 11 |
|
- | ||||
| 4 | 71002410 | Switch, Membrane (wht) | 11 |
|
- | ||||
| 5 | W10759523 | Screw (wht) (Replaces: 71002263) | 11 |
|
$ 5.71 | ||||
| 6 | 71001945 | Support, Control Panel | 11 |
|
- | ||||
| 7 | 71001946 | Trim, Control Panel (blk) | 11 |
|
- | ||||
| 7 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 | |||
| 8 | 71002137 | Switch, Oven Light (wht) | 11 |
|
- | ||||
| 9 | 71002139 | Bracket, Clock | 11 |
|
- | ||||
| 9 | Y705143 | Insulator | 11 |
|
- | ||||
| 10 | 71002360 | Light, Indicator | 11 |
|
- | ||||
| 11 | 71002138 | Thermostat | 11 |
|
- | ||||
| 12 | 71002412 | Knob, Thermostat/selector (wht | 11 |
|
- | ||||
| 13 | 71001127 | Switch, Selector----na | 11 |
|
- | ||||
| 14 | 71002129 | Harness, Door Lock (dbl) | 11 |
|
- | ||||
| 14 | 71002130 | Harness, Relay Board | 11 |
|
- | ||||
| 14 | 71002126 | Harness, Main Control | 11 |
|
- | ||||
| 14 | 71002128 | Harness, Door Switch (dbl) | 11 |
|
- | ||||
| 15 | 71002383 | Manual, Use & Care | 11 |
|
- | ||||
| 16 | 16000327 | Guide, Quick Ref. - Maytag | 11 |
|
- | ||||
| 17 | 16025903 | Tech Sht, Wall Oven, Elect | 10 |
|
- |
