SELECT A DIAGRAM
01 - Body

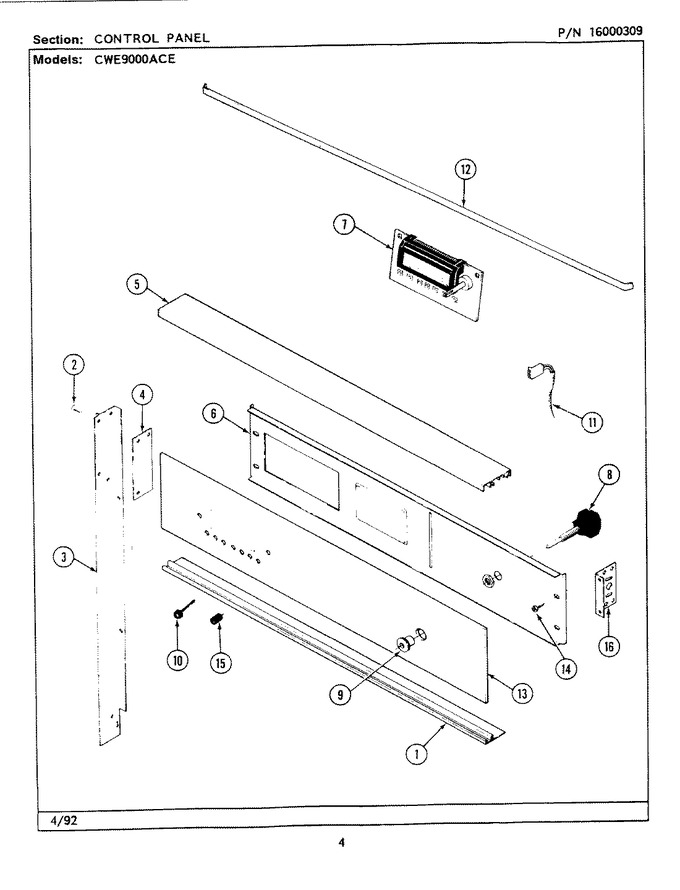

02 - Control Panel (cwe9000ace)
03 - Door
04 - Internal Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P042-60 | Extrusion | 07 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 07 |
|
Immediately | $ 12.62 | |||
| 3 | 7750P023-60 | Trim, Side (left) | 07 |
|
- | ||||
| 3 | 7750P022-60 | Extrusion (right) | 07 |
|
- | ||||
| 4 | 7726P028-60 | Trim, End Cap | 07 |
|
- | ||||
| 5 | 7752P003-60 | Extrusion, Top | 07 |
|
- | ||||
| 6 | 3605F161-80 | Plate Switch Mtg | 07 |
|
- | ||||
| 7 | 7003P034-60 | Shield, Clock Insulation | 07 |
|
- | ||||
| 7 | 7601P177-60 | Clock | 07 |
|
- | ||||
| 8 | 7403P196-60 | Switch, Oven Lamp | 07 |
|
- | ||||
| 9 | 7214P023-60 | Sleeve, Switch (wht) | 07 |
|
- | ||||
| 10 | 7711P453-60 | Button, Ctrl Set | 07 |
|
- | ||||
| 11 | 5170P094-60 | Wire Harness | 07 |
|
- | ||||
| 12 | 7752P004-60 | Extrusion, Filler Trim | 07 |
|
- | ||||
| 13 | 7912P066-60 | Glass - Control Panel | 07 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 07 |
|
Immediately | $ 6.85 | |||
| 15 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 07 |
|
$ 12.13 | ||||
| 16 | 3801F170-45 | Bracket - Switch Plate | 07 |
|
- |
