SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Door (cwe9000bcx Ser. Pre. 17)


05 - Internal Controls


06 - Oven

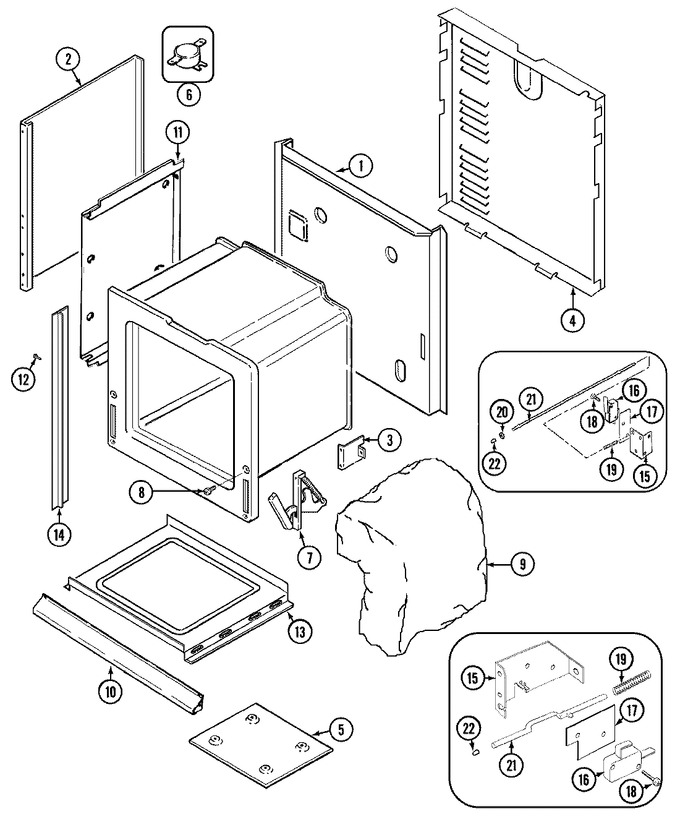

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F169-51		Back, Main	10	Appelez-nous	-
2	2618F082-51		Panel, Side	10	Appelez-nous	-
3	3807F400-51		Support,oven Rear	10	Appelez-nous	-
4	4005F434-51		Cover, Rear	10	Appelez-nous	-
5	74003035		Shield, Heat	22	Appelez-nous	-
5	3604F189-51		Shield, Heat	10	Appelez-nous	-
6	7403P316-60		Switch, Hi-limit	10			$ 87.76
7	7106P050-60		Hinge----na	10	Appelez-nous	-
7	WP74011141		Hinge, Door   (Replaces: 74003249)	28		Immediately	$ 128.06
8	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
9	4804F029-60		Insulation, Wrap	10	Appelez-nous	-
9	74003036		Insulation, Oven Wrap	24	Appelez-nous	-
9	4804F030-60		Insulation, Back & Bottom	10	Appelez-nous	-
10	3604F181-70		Shield, Lower Vent (blk)	10	Appelez-nous	-
11	3804F108-51		Retainer, Insulation (side)	10	Appelez-nous	-
12	74001387		Screw (blk)	15	Appelez-nous	-
12	74001394		Spacer, Mtg. Adapter (blk)	15	Appelez-nous	-
13	4011F217-51		Bottom, Main	10	Appelez-nous	-
14	71002697		Extrusion, Side Trim (lt-blk)	26	Appelez-nous	-
14	71002698		Extrusion, Side Trim (rt-blk)	26	Appelez-nous	-
14	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	26		Immediately	$ 6.47
14	74001391		Extrusion, Side (lt-blk)	15	Appelez-nous	-
14	74001389		Extrusion, Side (rt-blk)	15	Appelez-nous	-
14	7750P097-60		Trim, Side (rt-blk)	11	Appelez-nous	-
14	7750P098-60		Trim, Side (lt-blk)	11	Appelez-nous	-
14	7750P065-60		Trim, Side (left) Black	10	Appelez-nous	-
14	7750P052-60		Trim, Side (right) Black	10	Appelez-nous	-
14	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
15	74001632		Bracket, Switch Actuator	14	Appelez-nous	-
15	3801F316-51		Bracket, Light Switch	10	Appelez-nous	-
15	3801F354-51		Bracket, Light Switch	12	Appelez-nous	-
16	7403P281-60		Switch, Micro	10	Appelez-nous	-
16	12001053		Kit, Light Switch Actuator	10	Appelez-nous	-
16	74001628		Switch, Door Light	14	Appelez-nous	-
17	7003P047-60		Insulator, Switch	10	Appelez-nous	-
17	7003P062-60		Insulator, Switch	12	Appelez-nous	-
17	74001626		Insulator, Door Switch	14	Appelez-nous	-
18	7101P330-60		Screw, Switch	10	Appelez-nous	-
19	74001629		Spring, Door Switch	14			$ 15.03
19	7803P067-60		Spring	10	Appelez-nous	-
20	7109P020-60		Washer	10	Appelez-nous	-
21	7809P023-60		Rod	12	Appelez-nous	-
21	7809P018-60		Rod	10	Appelez-nous	-
21	74001630		Rod, Door Light Switch	14	Appelez-nous	-
22	8003P012-60		Bumper	10	Appelez-nous	-
22	74001631		Bumper, Rod	14			$ 5.22

    View Diagram in Separate Window       Print Part List
