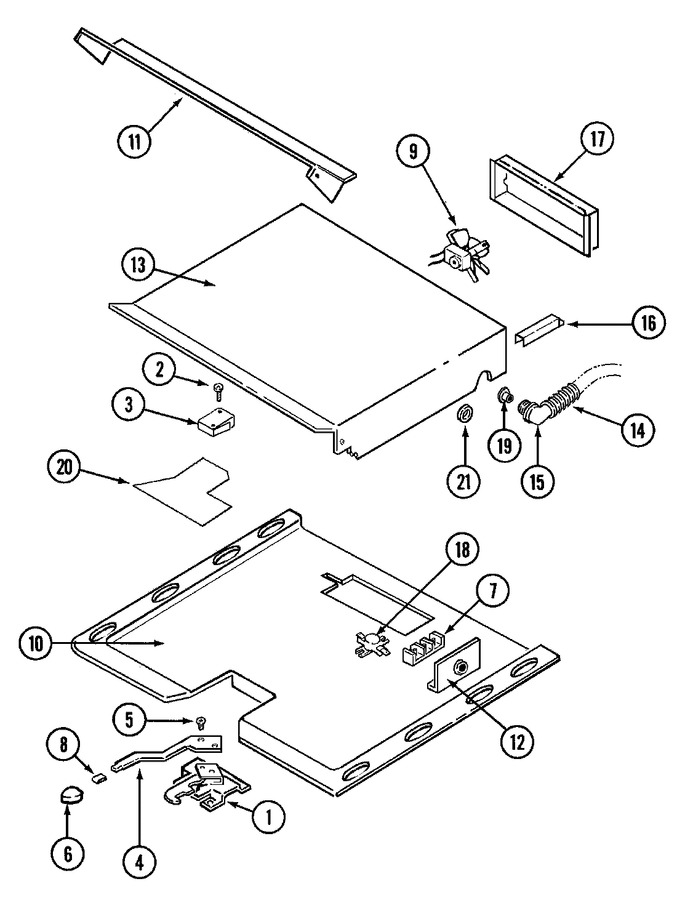

01 - Body (cwe9000bcm)
02 - Control Panel (cwe9000bcm)
03 - Door (cwe9000bcm)
04 - Internal Controls (cwe9000bcm)
05 - Oven (cwe9000bcm)
06 - Wiring Information (cwe9000bcm)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8002P025-60 | Latch Assy. | 19 |
|
- | ||||
| 1 | 4804F028-60 | Insulation, Latch Assy. | 19 |
|
- | ||||
| 1 | 74003032 | Latch Assy. | 24 |
|
- | ||||
| 2 | 7101P330-60 | Screw, Switch | 19 |
|
- | ||||
| 3 | 7403P361-60 | Switch, Door Latch | 19 |
|
- | ||||
| 4 | 74003006 | Lever, Latch (brn) | 21 |
|
- | ||||
| 4 | 74001725 | Lever, Door Latch | 19 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 19 |
|
$ 4.29 | ||||
| 6 | 7701P151-60 | Handle, Latch (alm) | 19 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note | 21 |
|
- | ||||
| 7 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 19 |
|
Immediately | $ 31.65 | |||
| 8 | W10124350 | Not Required Part Or See Note | 21 |
|
- | ||||
| 8 | 7112P112-60 | Clip, Latch Lever | 19 |
|
$ 4.83 | ||||
| 9 | 7427P010-60 | Fan Assy. | 19 |
|
- | ||||
| 10 | 74001793 | Retainer, Top Insulation | 19 |
|
- | ||||
| 11 | 4005F431-51 | Cover, Fan Housing | 19 |
|
- | ||||
| 12 | 3605F174-51 | Plate, Conduit Tubing | 19 |
|
- | ||||
| 13 | 4001F092-51 | Housing, Fan | 19 |
|
- | ||||
| 14 | 3414F066-51 | Tubing, Conduit | 19 |
|
- | ||||
| 14 | 5140A037-60 | Wires, Conduit Tubing | 19 |
|
- | ||||
| 15 | 7417P005-60 | Connector, Conduit | 19 |
|
- | ||||
| 16 | 3830F008-51 | Raceway, Wire | 19 |
|
- | ||||
| 17 | 4005F262-51 | Cover, Fan | 19 |
|
- | ||||
| 18 | 7403P313-60 | Switch, Hi-limit | 19 |
|
- | ||||
| 18 | 7101P313-60 | Screw (8abx3/8-zn) | 19 |
|
- | ||||
| 19 | 8008P017-60 | Grommet | 19 |
|
- | ||||
| 20 | 74001804 | Insulator, Latch Switch | 19 |
|
- | ||||
| 21 | 7109P002-60 | Washer | 19 |
|
- |
