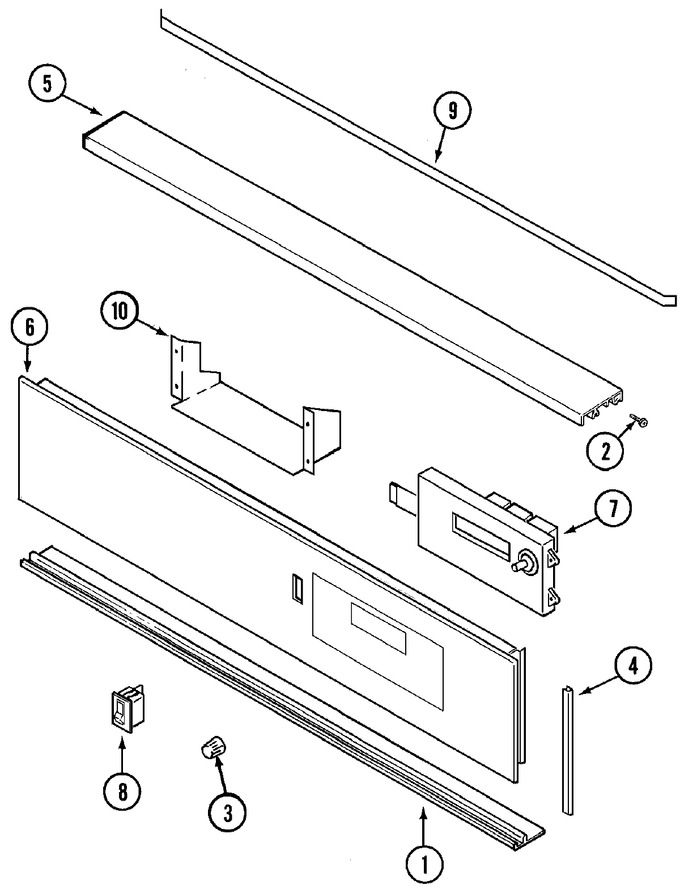

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P098-60 | Trim, Vent (blk) | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 3 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 74002337) | 10 |
|
$ 12.13 | ||||
| 4 | 7720P151-60 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 5 | 71002699 | Extrusion, Top Trim (blk) | 16 |
|
- | ||||
| 5 | 7756P100-60 | Trim, Top (blk) | 10 |
|
- | ||||
| 6 | 74001423 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 7601P231-60CP | Clock (canada) (Replaces: 7601P231-60) | 10 |
|
- | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 9 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 9 | 7752P010-60 | Trim, Filler Strip (blk) | 10 |
|
- | ||||
| 10 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| NI | 5170P207-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| NI | 74002776 | Harness, Main Wire | 10 |
|
- | ||||
| NI | 74002777 | Manual, Use & Care (french) | 10 |
|
- | ||||
| NI | 74002568 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
