SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Door (serial Prefix 11)
05 - Internal Controls
06 - Oven
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

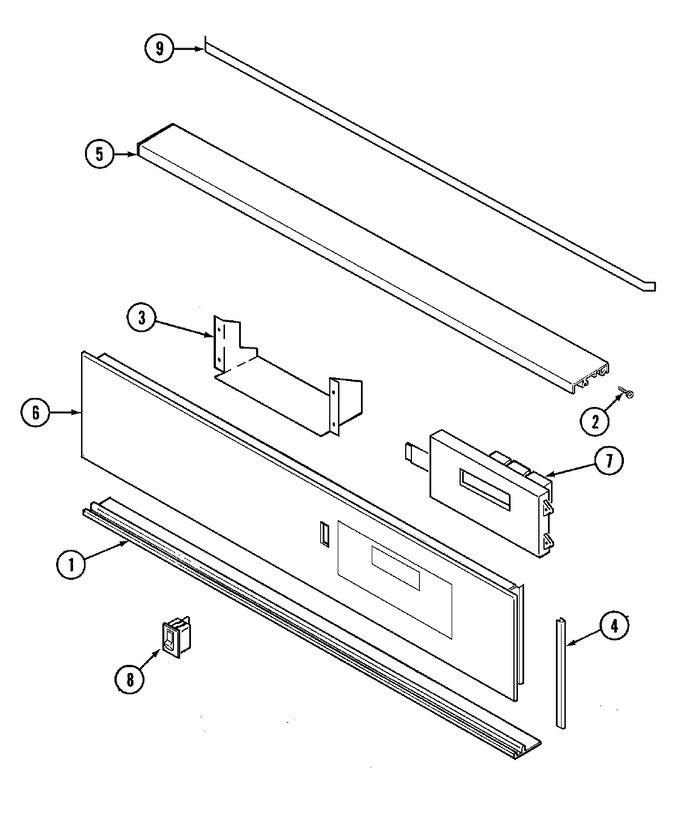

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P098-60 | Trim, Vent (blk) | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 3 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 4 | 7720P151-60 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 5 | 7756P100-60 | Trim, Top (blk) | 10 |
|
- | ||||
| 6 | 74001789 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 74001810 | Clock | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 9 | 7752P010-60 | Trim, Filler Strip (blk) | 10 |
|
- | ||||
| 9 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| NI | 74001811 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
