SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Internal Controls


05 - Oven


06 - Wiring Information

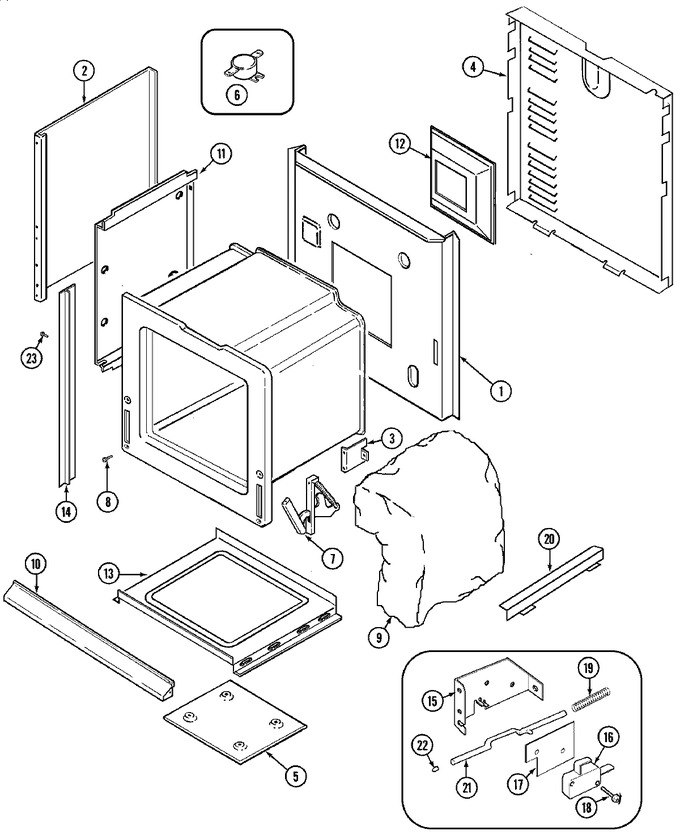

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001798		Back, Main	10	Appelez-nous	-
2	2618F082-51		Panel, Side	10	Appelez-nous	-
3	3807F400-51		Support,oven Rear	10	Appelez-nous	-
4	4005F434-51		Cover, Rear	10	Appelez-nous	-
5	74003035		Shield, Heat	12	Appelez-nous	-
5	3604F189-51		Shield, Heat	10	Appelez-nous	-
6	7403P316-60		Switch, Hi-limit	10			$ 87.76
7	7106P057-60		Hinge	10	Appelez-nous	-
7	WP74011141		Hinge, Door   (Replaces: 74003249)	18		Immediately	$ 128.06
8	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
9	74001799		Insulation, Wrapper	10	Appelez-nous	-
9	74001800		Insulation, Back	10	Appelez-nous	-
9	74003036		Insulation, Oven Wrap	14	Appelez-nous	-
10	3604F181-70		Shield, Lower Vent (blk)	10	Appelez-nous	-
11	74001436		Retainer, Insulation (side)	10	Appelez-nous	-
12	74001801		Retainer, Insul. (back)	10	Appelez-nous	-
13	74001742		Bottom, Main	10	Appelez-nous	-
14	71002698		Extrusion, Side Trim (rt-blk)	16	Appelez-nous	-
14	71002697		Extrusion, Side Trim (lt-blk)	16	Appelez-nous	-
14	74001389		Extrusion, Side (rt-blk)	10	Appelez-nous	-
14	74001391		Extrusion, Side (lt-blk)	10	Appelez-nous	-
15	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
16	74001802		Switch	10	Appelez-nous	-
17	74001872		Insulator, Switch	10	Appelez-nous	-
18	7101P330-60		Screw, Switch	10	Appelez-nous	-
19	74001629		Spring, Door Switch	10			$ 15.03
20	74001627		Insulator, Door Switch	10	Appelez-nous	-
21	74001630		Rod, Door Light Switch	10	Appelez-nous	-
22	74001631		Bumper, Rod	10			$ 5.22
23	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	16		Immediately	$ 6.47
23	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
NI	74001394		Spacer, Mtg. Adapter (blk)	10	Appelez-nous	-
NI	74001387		Screw (blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
