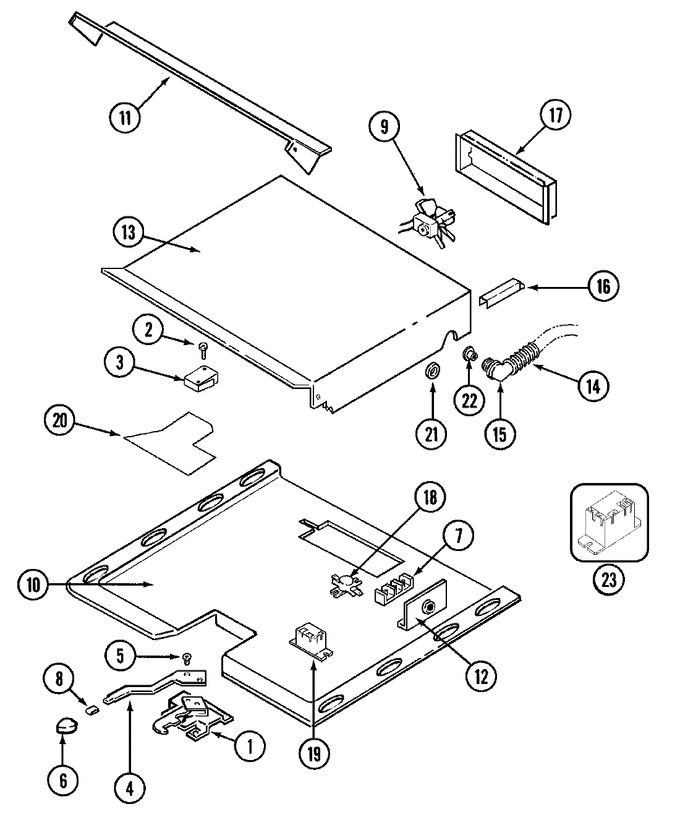

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 1 | 74003032 | Latch Assy. | 14 |
|
- | ||||
| 1 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 1 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 14 |
|
$ 6.70 | ||||
| 1 | 8002P025-60 | Latch Assy. | 10 |
|
- | ||||
| 2 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 3 | 7403P361-60 | Switch, Door Latch | 10 |
|
- | ||||
| 4 | 74002973 | Lever, Latch (gry) | 11 |
|
- | ||||
| 4 | 74001725 | Lever, Door Latch | 10 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 6 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 6 | 7701P153-60 | Handle, Door Latch (wht) | 10 |
|
- | ||||
| 7 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 | |||
| 8 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 8 | 7112P112-60 | Clip, Latch Lever | 10 |
|
$ 4.83 | ||||
| 9 | 7427P010-60 | Fan Assy. | 10 |
|
- | ||||
| 10 | 74001793 | Retainer, Top Insulation | 10 |
|
- | ||||
| 11 | 4005F431-51 | Cover, Fan Housing | 10 |
|
- | ||||
| 12 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 13 | 4001F092-51 | Housing, Fan | 10 |
|
- | ||||
| 14 | 74002774 | Wires, Conduit Tubing | 10 |
|
- | ||||
| 14 | 3414F037-44 | Tubing, 1/2 X 48`` Flexible | 19 |
|
- | ||||
| 14 | 7434P010-60 | Tubing, Conduit (canada) | 10 |
|
- | ||||
| 15 | 7417P005-60 | Connector, Conduit | 10 |
|
- | ||||
| 15 | 74003068 | Connector, Tubing | 19 |
|
- | ||||
| 16 | 3830F008-51 | Raceway, Wire | 10 |
|
- | ||||
| 17 | 4005F262-51 | Cover, Fan | 10 |
|
- | ||||
| 18 | 7403P313-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 18 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 19 | 74001796 | Relay | 10 |
|
- | ||||
| 20 | 74001804 | Insulator, Latch Switch | 10 |
|
- | ||||
| 21 | 7109P002-60 | Washer | 10 |
|
- | ||||
| 22 | 8008P017-60 | Grommet | 10 |
|
- | ||||
| 23 | 7428P023-60 | Relay | 10 |
|
- | ||||
| NI | 74002965 | Harness, Main Wire | 10 |
|
- | ||||
| NI | 74001790 | Harness, Oven Sensor/latch | 10 |
|
- |
