SELECT A DIAGRAM

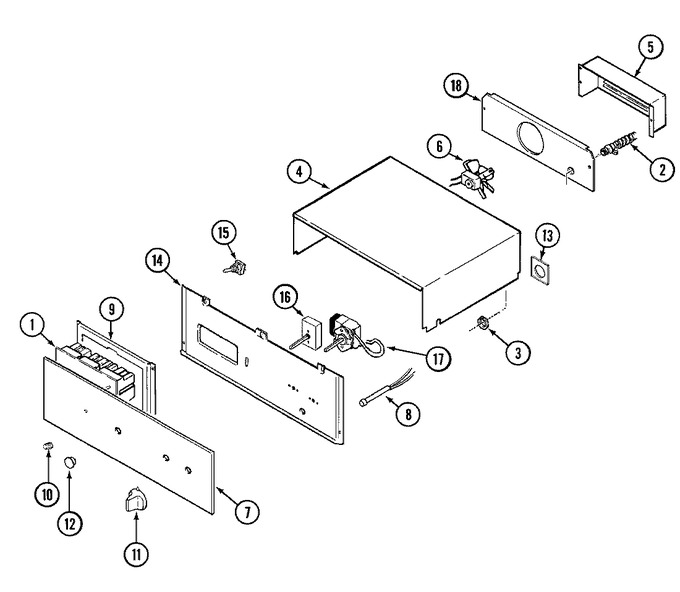

01 - Control Panel


02 - Door


03 - Oven/body


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P098-60		Clock	10	Appelez-nous	-
2	5140A001-60		Harness Conduit	10	Appelez-nous	-
2	8018P002-60		Sleeve, Tube	10	Appelez-nous	-
2	3414F037-44		Tubing, 1/2 X 48`` Flexible	10	Appelez-nous	-
3	7417P017-60		Connector, Cable	10			$ 9.81
4	4005F150-51		Cover, Wire	10	Appelez-nous	-
5	4005F262-51		Cover, Fan	10	Appelez-nous	-
6	8008P004-60		Grommet	10	Appelez-nous	-
6	7427P006-60		Fan Assembly	10	Appelez-nous	-
7	74001477		Glass, Control Panel	10	Appelez-nous	-
8	5700A236-60		Light, Indicator	10	Appelez-nous	-
8	7414P004-60		Insulator, Terminal	10	Appelez-nous	-
9	74001454		Bracket, Clock	10	Appelez-nous	-
10	7711P007-60		Knob, Clock	10	Appelez-nous	-
11	7711P291-60		Knob (chr)	10	Appelez-nous	-
12	7214P007-60		Sleeve, Switch (blk)	10	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	10	Appelez-nous	-
14	74001455		Plate, Switch	10	Appelez-nous	-
15	7403P109-60		Switch, Push (blk)	10	Appelez-nous	-
16	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
16	7403P172-60		Switch, Selector	10	Appelez-nous	-
17	7404P049-60		Thermostat, Oven	10			$ 113.60
17	7101P279-60		Screw W/washer	10	Appelez-nous	-
18	3605F164-51		Plate, Conduit	10	Appelez-nous	-
NI	5195A024-60		Harness, Control Panel	10	Appelez-nous	-
NI	5185A107-60		Harness, Wire	10	Appelez-nous	-
NI	74001456		Wires, Loose	10	Appelez-nous	-
NI	8112P087-60		Manual, Use & Care	10	Appelez-nous	-
NI	16002079		Guide, Quick Ref - Admiral	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
