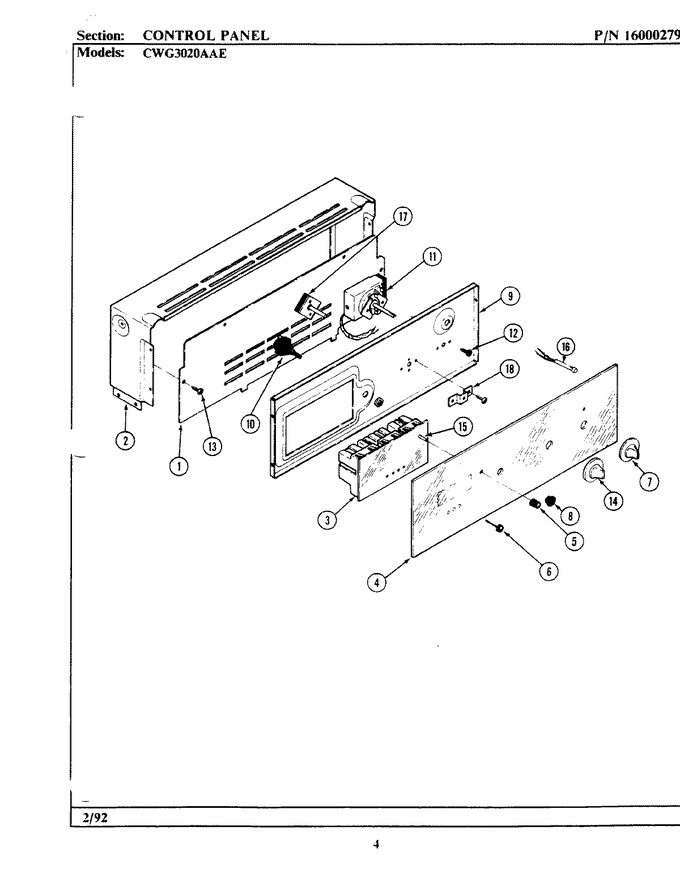

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F098-51 | Back Control Box | 00 |
|
- | ||||
| 2 | 4006F057-51 | Box Control | 00 |
|
- | ||||
| 3 | 7601P130-60K | Clock | 00 |
|
- | ||||
| 4 | 7912P074-60 | Glass, Control Panel | 00 |
|
- | ||||
| 5 | 7711P419-60 | Knob, Clock (wht) | 00 |
|
- | ||||
| 6 | 7711P420-60 | Knob, Clock (button-wht) | 00 |
|
- | ||||
| 7 | 7731P074-60 | Knob, Thermostat | 00 |
|
- | ||||
| 8 | 7214P023-60 | Sleeve, Switch (wht) | 00 |
|
- | ||||
| 9 | 3807F367-80 | Support, Clock | 00 |
|
- | ||||
| 10 | 7403P204-60 | Switch, Push (wht) | 00 |
|
- | ||||
| 11 | 7404P061-60 | Thermostat | 00 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 00 |
|
Immediately | $ 6.85 | |||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 14 | 7739P044-60 | Knob, Sel Switch | 00 |
|
- | ||||
| 15 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 00 |
|
$ 0.81 | ||||
| 16 | 5700A242-60 | Signal Light | 00 |
|
- | ||||
| 17 | 7403P034-60 | Switch | 00 |
|
- | ||||
| 18 | 3807F328-45 | Support, Switch Shaft | 00 |
|
- | ||||
| NI | 3608F019-32 | Retainer, Trim Bkgd | 00 |
|
- | ||||
| NI | 5195A062-60 | Wire Control Panel | 00 |
|
- |
