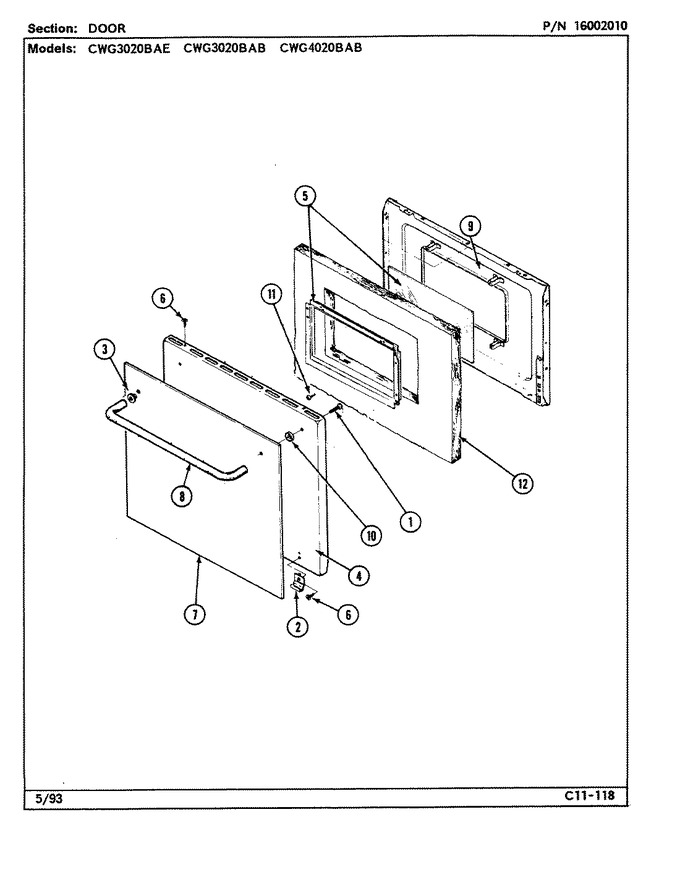

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 2 | 7112P094-60 | Clip, Glass (wht) | 10 |
|
$ 7.19 | ||||
| 3 | 8010P091-60 | Spacer, Hnld | 10 |
|
- | ||||
| 4 | 2401W103-71 | Panel, Door | 10 |
|
- | ||||
| 4 | 8270P098-60 | Tape | 10 |
|
$ 5.02 | ||||
| 5 | 7907P011-60 | Glass Door | 10 |
|
- | ||||
| 6 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 10 |
|
Immediately | $ 6.85 | |||
| 7 | 7902P362-60 | Glass, Door | 10 |
|
- | ||||
| 8 | 7701P137-60 | Handle | 10 |
|
- | ||||
| 9 | 2402W197-19 | Lining, Door | 10 |
|
- | ||||
| 10 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 10 |
|
$ 13.08 | ||||
| 11 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 11 | 7118P009-60 | Bolt, Shoulder | 10 |
|
- | ||||
| 12 | 7002P058-60 | Insulation, Oven Door | 10 |
|
- |
