01 - Control Panel
02 - Door (upper & Lower)
03 - Gas Controls
04 - Oven/body
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

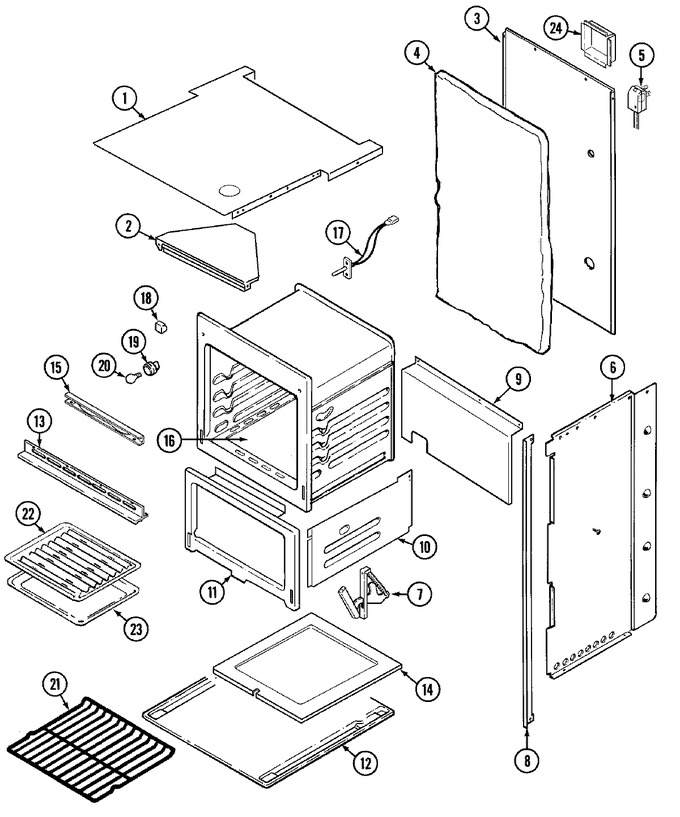

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8008P004-60 | Grommet | 10 |
|
- | ||||
| 1 | W10204425 | Cover Box Wall Oven (Replaces: 4005F152-51) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 7401P037-60 | Block, Terminal | 10 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 2 | 4006W077-19 | Box, Flue Assy | 10 |
|
- | ||||
| 3 | 74001914 | Back, Main | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74001849 | Insulation, Top & Back | 10 |
|
- | ||||
| 4 | 74001917 | Insulation, Wrapper | 10 |
|
- | ||||
| 5 | 74009599 | Cord, Power | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74001915 | Panel, Side (lt) | 10 |
|
- | ||||
| 6 | 74001916 | Panel, Side (rt) | 10 |
|
- | ||||
| 7 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 7 | 74003894 | Hinge, Broiler Door | 14 |
|
- | ||||
| 7 | 74001856 | Hinge Assy. | 10 |
|
$ 123.16 | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 8 | 74001919 | Extrusion, Side (rt-blk) | 10 |
|
- | ||||
| 8 | 74004058 | Trim, Side (rt-blk) | 15 |
|
- | ||||
| 8 | 74001918 | Extrusion, Side (lt-blk) | 10 |
|
- | ||||
| 8 | 74004057 | Trim, Side (lt-blk) | 15 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74001921 | Broiler, Back | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 10 |
|
$ 6.47 | ||||
| 10 | 74001923 | Broiler, Side (rt) | 10 |
|
- | ||||
| 10 | 74001922 | Broiler, Side (lt) | 10 |
|
- | ||||
| 11 | 74001924 | Extension, Oven Front | 10 |
|
- | ||||
| 11 | 74003895 | Extension, Oven Front | 14 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74001925 | Base, Main | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 13 | 74001846 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 14 | 2205F005-19 | Bottom, Oven | 10 |
|
- | ||||
| 15 | 5720A011-23 | Support, Oven Bottom | 10 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P261-60) | 10 |
|
Immediately | $ 6.85 | |||
| 16 | 74001927 | Bottom, Oven (upper) | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) | 10 |
|
Immediately | $ 41.01 | |||
| 18 | 8003P009-60 | Bumper, Door (square) | 10 |
|
- | ||||
| 19 | 7408P035-60 | Receptacle, Oven Bulb | 10 |
|
$ 30.71 | ||||
| 20 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 21 | 7801P005-60 | Rack | 10 |
|
- | ||||
| 22 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 23 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 24 | 4005F088-80 | Cover | 10 |
|
- |
