SELECT A DIAGRAM

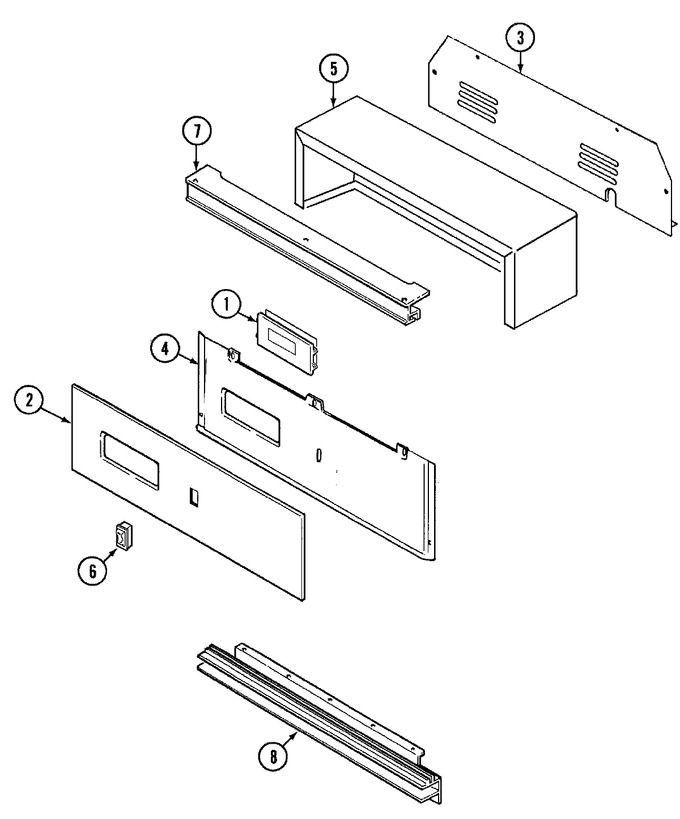

01 - Control Panel (stl)


02 - Door (stl)


03 - Gas Controls (stl)


04 - Oven/body (stl)


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010614		Clock W/overlay (stl-gas)	10	Appelez-nous	-
1	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
2	7101P311-60		Screw----na	10	Appelez-nous	-
2	74010608		Panel, Control (stl)	10	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74001913		Cover, Rear Wire	10	Appelez-nous	-
4	74007897		Plate, Backing	10	Appelez-nous	-
5	4005F153-51		Cover, Wire	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	7403P067-60		Switch, Rocker (blk)   (Replaces: 74009176)	10			$ 91.35
7	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
7	74001854		Extrusion, Top Front (blk)	10	Appelez-nous	-
8	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
8	W10220974		Extrusion, Vent (blk)   (Replaces: 74010619)	10	Appelez-nous	-
10	W10169648		Manual, Use & Care	11	Appelez-nous	-
NI	74004796		Manual, Use & Care	10	Appelez-nous	-
NI	16026549		Svc Man, Wall Oven, Gas	10	Appelez-nous	-
NI	16026547		Tech Sht, Wall Oven, Gas	10	Appelez-nous	-
NI	8112P325-60		Manual, Use & Care	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
