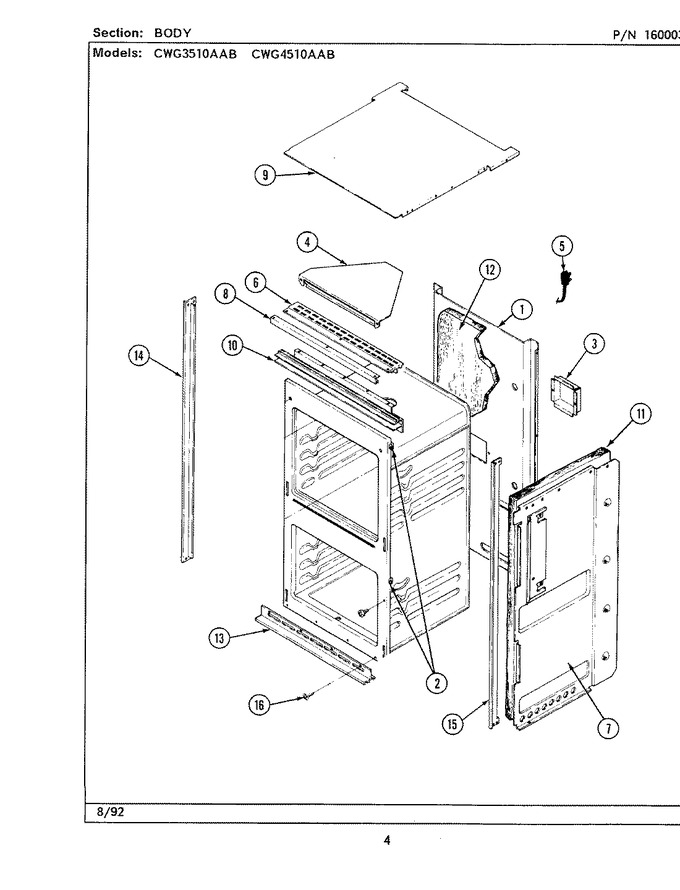

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F041-51		Back, Main	13	Appelez-nous	-
2	7112P020-60		Clip, Oven Front	13	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	13		Immediately	$ 6.85
3	4005F088-80		Cover	13	Appelez-nous	-
4	4006W077-19		Box, Flue Assy	13	Appelez-nous	-
5	7402P014-60		Cord, Power	13	Appelez-nous	-
6	7706P078-60		Extrusion, Top (wht)	13	Appelez-nous	-
7	2618F056-51		Panel, Side-lt	13	Appelez-nous	-
7	2618F055-51		Panel, Side Right	13	Appelez-nous	-
7	2618F089-51		Panel, Side Right	15	Appelez-nous	-
7	2618F088-51		Panel, Side Lf.	15	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P061-60)	13		Immediately	$ 6.85
8	7706P198-60		Extrusion, Top Front	13	Appelez-nous	-
9	W10204425		Cover Box Wall Oven   (Replaces: 4005F152-51)	13	Appelez-nous	-
10	7756P026-60		Extrusion, Vent	13	Appelez-nous	-
11	7002P107-60		Insulation, Wrapper	13	Appelez-nous	-
12	7002P109-60		Insulation, Top & Rear	13	Appelez-nous	-
13	7706P075-60		Extrusion, Bottom (chr)	13	Appelez-nous	-
14	7750P033-60		Extrusion, Side-l	13	Appelez-nous	-
15	7103P051-60		Nut, Snap	13	Appelez-nous	-
15	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	13			$ 9.89
15	7103P040-60		Nut, Snap (wht)	13	Appelez-nous	-
15	7750P034-60		Extrusion, Side-r	13	Appelez-nous	-
16	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	13		Immediately	$ 12.62
