SELECT A DIAGRAM
01 - Control Panel
02 - Door (upper & Lower)

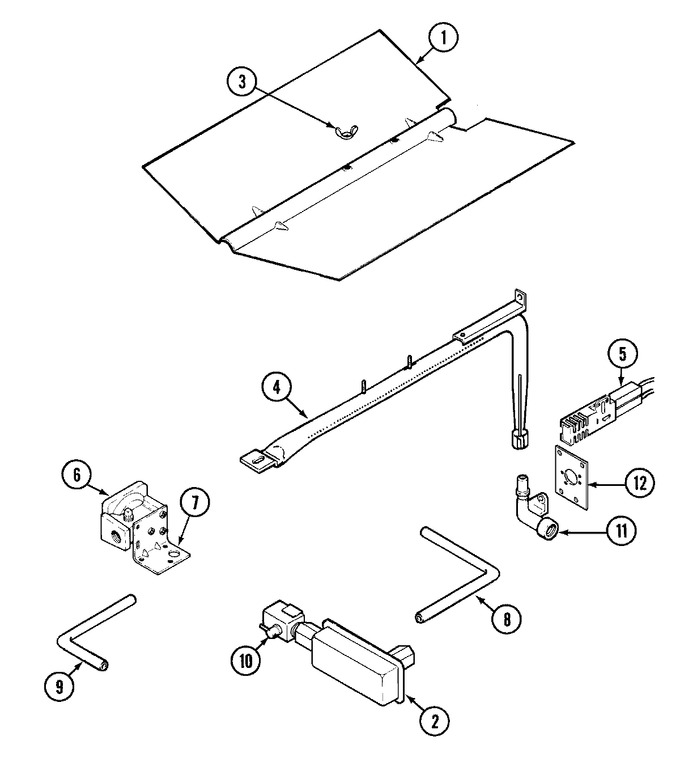

03 - Gas Controls
04 - Oven/body
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F215-45 | Baffle, Oven Burner | 10 |
|
- | ||||
| 2 | 74006349 | Valve, Oven | 19 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note 7101p071-60 Not Required 21 | 21 |
|
- | ||||
| 2 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 21 |
|
$ 6.77 | ||||
| 2 | W10080180 | Nut (Replaces: 7103P034-60) | 10 |
|
$ 12.13 | ||||
| 2 | 7501P018-60 | Valve, Bake | 10 |
|
- | ||||
| 2 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 2 | 7101P071-60 | Screw | 10 |
|
- | ||||
| 2 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 2 | 74007019 | Valve, Oven | 21 |
|
- | ||||
| 3 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 4 | 3403D030-45 | Burner Assy., Oven | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | WP3351614 | Screw (Replaces: 7101P328-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 10 |
|
Immediately | $ 60.44 | |||
| 5 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 6 | 7510P081-60 | Regulator, Pressure (Replaces: 74005560) | 18 |
|
- | ||||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 6 | 7510P036-60 | Regulator Pressure | 10 |
|
- | ||||
| 6 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 7 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 7 | 74001932 | Support, Regulator | 10 |
|
- | ||||
| 8 | 74006350 | Tubing, Oven Valve | 19 |
|
- | ||||
| 8 | 3414F039-44 | Tubing, 3/8 X 31 | 10 |
|
- | ||||
| 9 | 3414F097-44 | Tubing, Regulator (3/8``) | 10 |
|
- | ||||
| 10 | 74005561 | Valve, Shut Off | 18 |
|
- | ||||
| 10 | 74006866 | Valve, Shut Off | 20 |
|
- | ||||
| 10 | 7502P002-60 | Valve, Shut Off | 10 |
|
- | ||||
| 11 | 74006351 | Fitting, Burner | 19 |
|
- | ||||
| 11 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 11 | 7507P008-60 | Fitting, Bake Bnr. | 10 |
|
- | ||||
| 12 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 12 | 3807F122-34 | Support | 10 |
|
- | ||||
| NI | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| NI | 7111P007-60 | Clamp, Wire | 10 |
|
- | ||||
| NI | 8019P004-60 | Strap, Wire Tie | 10 |
|
- |
