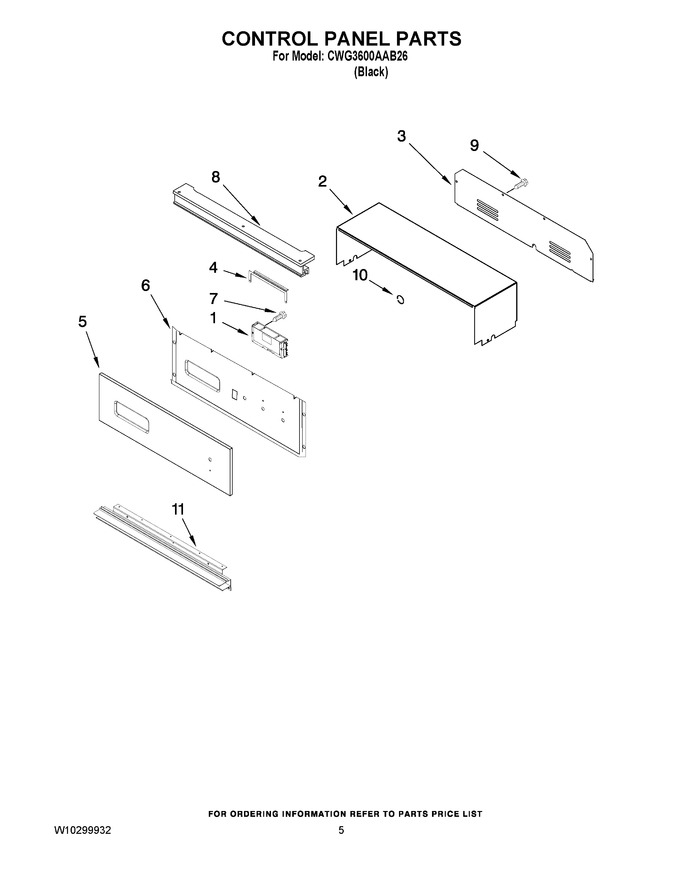

04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10201912 | Clock (Replaces: W10201912) |
|
$ 395.18 | |||||
| 2 | W10214295 | Cover, Wire Rear |
|
- | |||||
| 3 | W10204424 | Cover, Wire |
|
- | |||||
| 4 | W10249336 | Bracket, Control |
|
- | |||||
| 5 | 8010P050-60 | Spacer, Felt |
|
- | |||||
| 5 | W10199940 | Panel, Control |
|
- | |||||
| 6 | W10196355 | Plate, Backing |
|
- | |||||
| 7 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 6.98 | |||||
| 8 | 7756P104-60 | Extrusion, Top Front |
|
- | |||||
| 9 | 7101P287-60 | Screw |
|
$ 12.03 | |||||
| 10 | 8008P004-60 | Grommet |
|
- | |||||
| 11 | W10220974 | Extrusion, Vent |
|
- |
