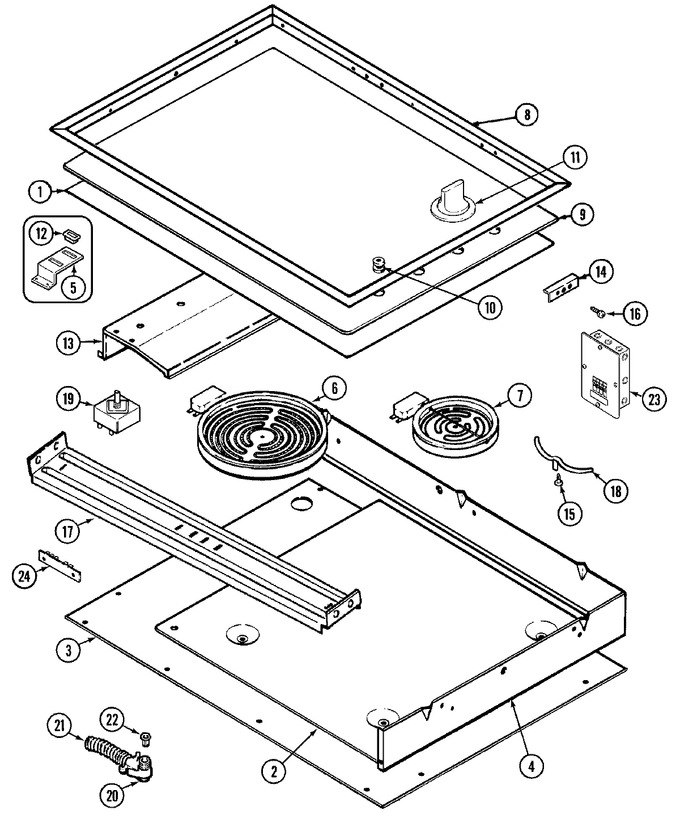

01 - Top Assembly
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001490 | Baffle, Ceramic Top | 13 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 13 |
|
Immediately | $ 6.85 | |||
| 2 | 3601F173-51 | Baffle, Heat----na | 13 |
|
- | ||||
| 3 | 74001491 | Box, Burner | 13 |
|
- | ||||
| 4 | 74001430 | Sides, Burner Box | 13 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 13 |
|
Immediately | $ 6.85 | |||
| 5 | 3801F313-45 | Bracket | 13 |
|
- | ||||
| 6 | 12500040 | Limiter Kit (8``) | 13 |
|
- | ||||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 13 |
|
Immediately | $ 316.13 | |||
| 7 | 12500041 | Limiter Kit (6``) | 13 |
|
- | ||||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 13 |
|
Immediately | $ 309.01 | |||
| 8 | 7746P029-60 | Frame, Main Top | 13 |
|
- | ||||
| 9 | 7918P070-60 | Top, Main (glass-wht) | 13 |
|
- | ||||
| 9 | 74001497 | Spacer, Rubber | 13 |
|
- | ||||
| 10 | 8008P033-60 | Grommet | 13 |
|
- | ||||
| 11 | 74002090 | Knob, Infinite Switch (wht) | 18 |
|
- | ||||
| 11 | 7737P029-60 | Knob, Switch | 13 |
|
$ 18.07 | ||||
| 12 | 74001242 | Light, Indicator (2 Term) | 13 |
|
- | ||||
| 12 | 74001241 | Light, Indicator (3 Term) | 13 |
|
- | ||||
| 13 | WP4159193 | Screw (Replaces: 7118P004-60) | 13 |
|
$ 4.29 | ||||
| 13 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 13 |
|
$ 12.06 | ||||
| 13 | 3605F175-45 | Plate, Switch Mtg | 13 |
|
- | ||||
| 14 | 74002256 | Retainer, Main Top | 15 |
|
- | ||||
| 14 | 3804F092-45 | Retainer, Main Top Glass | 13 |
|
- | ||||
| 15 | WP74004005 | Screw (Replaces: 7101P349-60) | 13 |
|
$ 6.95 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 13 |
|
Immediately | $ 6.85 | |||
| 17 | 74001513 | Support, Ceramic Element | 13 |
|
- | ||||
| 17 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 13 |
|
$ 15.94 | ||||
| 18 | 8004P015-60 | Support, Element | 13 |
|
- | ||||
| 19 | 7403P320-60 | Switch, Infinite (8``) | 13 |
|
- | ||||
| 19 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 13 |
|
Immediately | $ 6.26 | |||
| 19 | 7212P030-60 | Seal, Gasket Inf. Sw. | 13 |
|
- | ||||
| 19 | 7403P322-60 | Switch, Infinite (6``) | 13 |
|
- | ||||
| 20 | 7417P005-60 | Connector, Conduit | 13 |
|
- | ||||
| 21 | 3801F072-45 | Bracket, Conduit | 13 |
|
- | ||||
| 21 | 7434P010-60 | Tubing, Conduit (canada) | 13 |
|
- | ||||
| 22 | 8008P017-60 | Grommet | 13 |
|
- | ||||
| 22 | 8018P001-60 | Sleeve, Tube | 13 |
|
- | ||||
| 22 | 5130A014-60 | Wires, Conduit | 13 |
|
- | ||||
| 23 | 8028P005-60 | Box, Breaker | 13 |
|
- | ||||
| 24 | 74001496 | Block, Terminal | 13 |
|
- | ||||
| NI | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 13 |
|
Immediately | $ 9.95 | |||
| NI | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 13 |
|
Immediately | $ 4.86 | |||
| NI | 8112P102-60 | Manual, Use & Care | 13 |
|
- |
