SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner

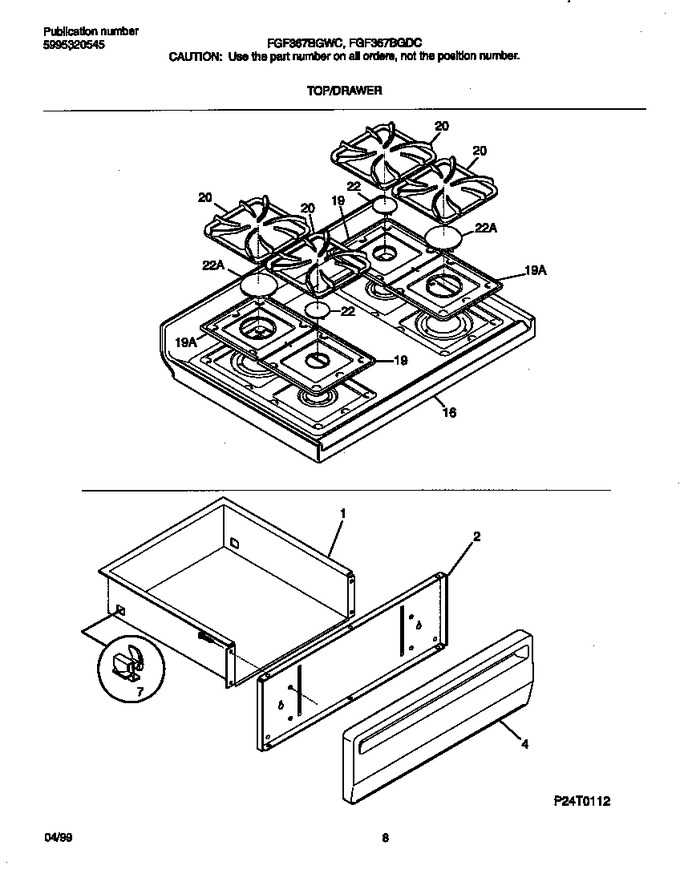

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307709		Main Top, White		Appelez-nous	-
19	316011415		Pan-burner, Black, Small, (2)				$ 53.60
19	316011419		Pan-burner, Black, Large, (2)				$ 102.90
20	316085305		Grate,(4)		Appelez-nous	-
22	316122100		Cap-burner, Powder Metal , Black ,small		Appelez-nous	-
22	316098505		Cap-burner,black ,large				$ 56.28
48	316077401		Shield-maintop,(2)		Appelez-nous	-
*10134	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*10135	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*10136	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*10138	316089600		Spacer-drawer, (2)		Appelez-nous	-
*10139	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
