SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

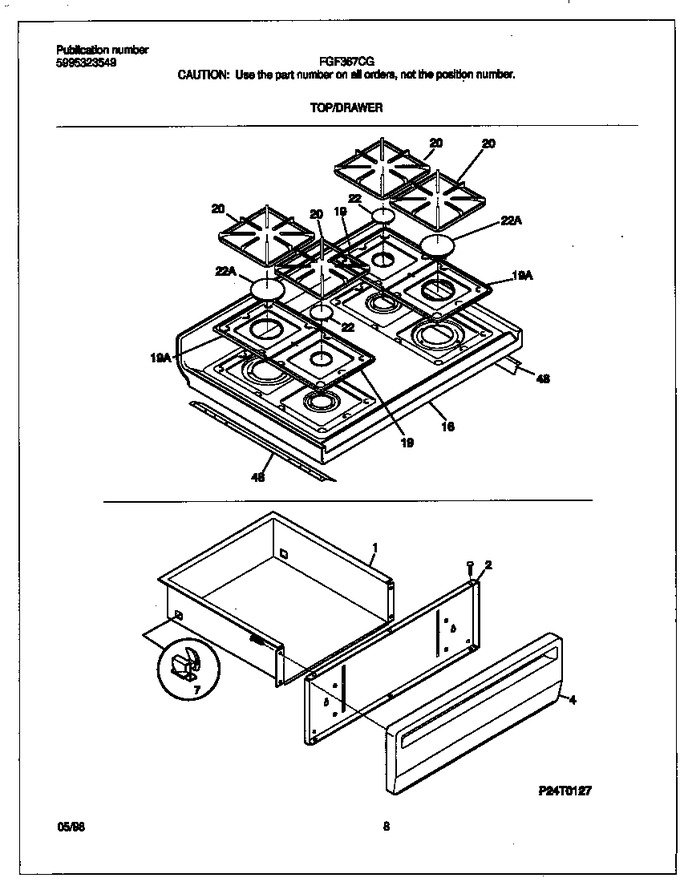

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011418		Pan-burner, Almond, Large, (2)		Appelez-nous	-
19	316011414		Pan-burner, Almond, Small, (2)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316122101		Cap-burner Glossy,glossy ,gray ,(4)				$ 34.85
22	316098509		Cap-burner,large ,gloss Gray		Appelez-nous	-
48	316077401		Shield-maintop,(2)		Appelez-nous	-
*01577	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*01578	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*01580	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*01581	316089600		Spacer-drawer, (2)		Appelez-nous	-
*01582	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*01583	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
