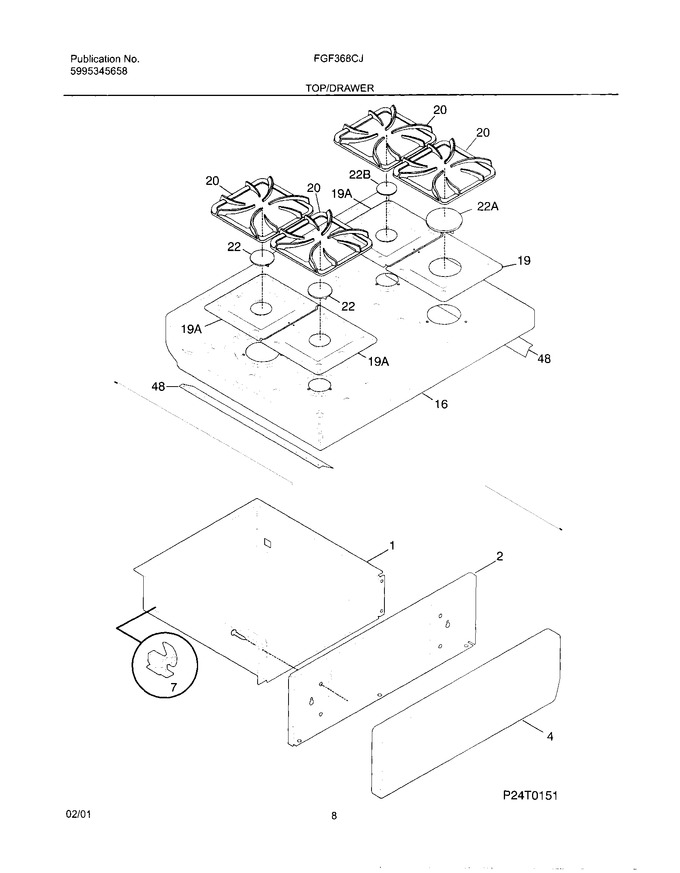

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,		Appelez-nous	-
4	316084405		Panel-drawer Front,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316114801		Maintop,white		Appelez-nous	-
19	316011417		Pan-burner,large ,gray				$ 102.20
19	316011409		Pan-burner,small ,gray				$ 153.83
20	316085304		Grate,gray ,(4)		Appelez-nous	-
21	316098509		Cap-burner,large ,gloss Gray		Appelez-nous	-
22	316122101		Cap-burner,small ,gray ,(4)				$ 34.85
22	316118801		Cap-simmer Burner, Gloss Gray				$ 37.63
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	3131903		Bumper				$ 55.36
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
