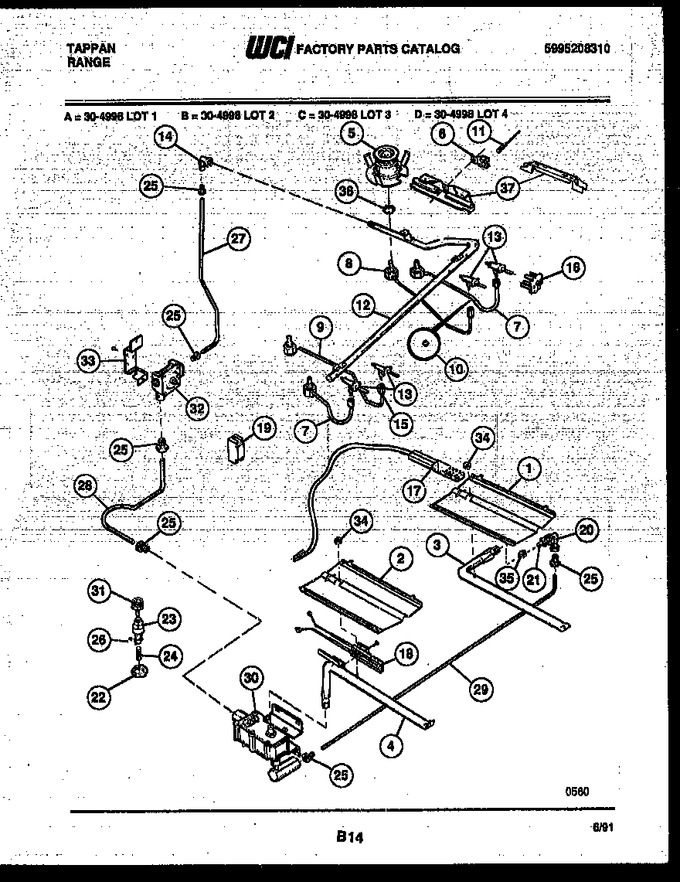

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131283 | Baffle, Broil |
|
- | |||||
| 2 | 3131284 | Baffle-oven |
|
$ 155.77 | |||||
| 3 | 079T028P01 | Burner, Broiler |
|
- | |||||
| 4 | 3131290 | Burner-oven |
|
- | |||||
| 5 | 079T032S02 | Burner, Top |
|
- | |||||
| 6 | 612T119F01 | Retainer, Igniter (4) |
|
- | |||||
| 7 | 3131970 | Burner Tube Rh/lf |
|
- | |||||
| 8 | 079T033H02 | Burner, Tube |
|
- | |||||
| 9 | 079T033H03 | Burner Tube, Left Rear |
|
- | |||||
| 10 | 247T074P01 | Ferrule (4) |
|
- | |||||
| 11 | 316T034P02 | Igniter, Top 50`` (4) |
|
- | |||||
| 12 | 3131440 | Manifold Pipe |
|
- | |||||
| 13 | 3017846 | Valve 3 Pos (4) |
|
- | |||||
| 14 | 215T013P01 | Elbow 1/2 Npt |
|
- | |||||
| 15 | 3131148 | Nut-compression |
|
- | |||||
| 16 | 3131580 | Switch-ignition |
|
- | |||||
| 17 | 316T023P12 | Igniter Burner Broiler |
|
- | |||||
| 18 | 3131300 | Igniter, Oven |
|
- | |||||
| 19 | 316T033P01 | Igniter, Module |
|
- | |||||
| 20 | 455T008P02 | Mixer, Elbow |
|
- | |||||
| 21 | 3131358 | Hex Nut 3/4 |
|
- | |||||
| 22 | 3131309 | Hex Nut Fuse |
|
- | |||||
| 23 | 647T087P01 | Seal ``o``ring |
|
- | |||||
| 24 | 3131297 | Fuse 5a 250v |
|
- | |||||
| 25 | 3131261 | Fitting, Loxit (6) |
|
- | |||||
| 26 | 3131359 | Recept Fuse |
|
- | |||||
| 27 | 750T085H09 | Tube Alum Reg. Manifold |
|
- | |||||
| 28 | 3131109 | Tube-valve To Reg |
|
- | |||||
| 29 | 3131364 | Tube Alum Valve/mixer |
|
- | |||||
| 30 | 774T116P11 | Valve, Safety-dual |
|
- | |||||
| 31 | 3131292 | Cap Fuse |
|
- | |||||
| 32 | 166T011P01 | Control, Regulator |
|
- | |||||
| 33 | 3131110 | Bracket, Regulator |
|
- | |||||
| 34 | 479T069P03 | Nut 10-04 Hex |
|
- | |||||
| 35 | 499T015P08 | Spud No 50 |
|
- | |||||
| 36 | 479T069P40 | Nut Special |
|
- | |||||
| 37 | 072T839F02 | Bracket, Ignition |
|
- | |||||
| *53152 | 3051420 | Rivet |
|
- | |||||
| 30A | 3131598 | Washer (repair) (non-illustrated) |
|
- |
