SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

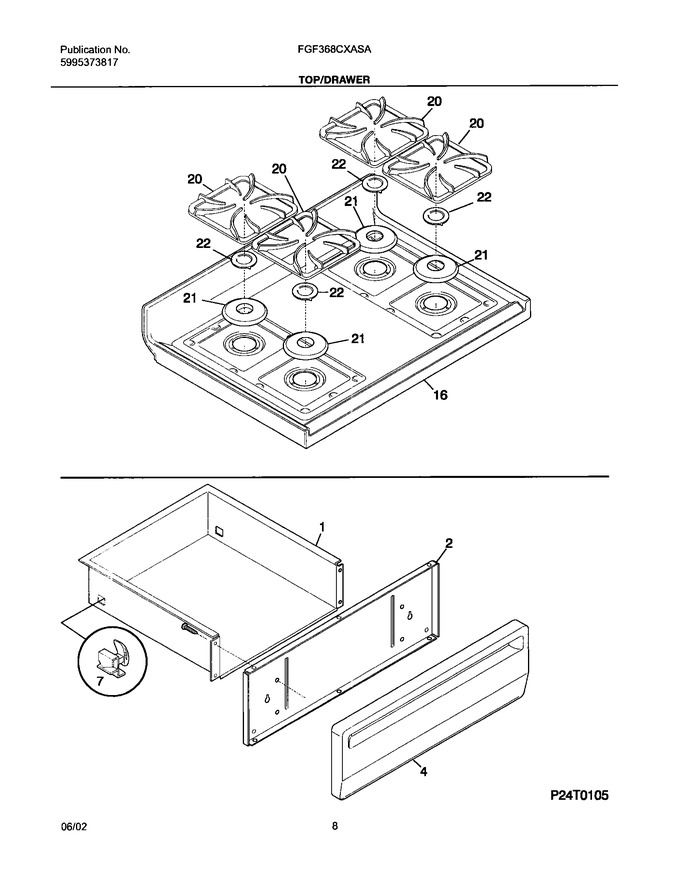

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	5303288582		Liner,drawer ,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316114801		Maintop,white		Appelez-nous	-
21	316011308		Trim Ring, Gray , Small		Appelez-nous	-
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
21A	316011307		Trim-ring, Gray , Large		Appelez-nous	-
F20	316085205		Grate, Gray, (4)		Appelez-nous	-
F22	316122101		Cap,burner ,small ,gray				$ 34.85
F22A	316098509		Cap-burner,large ,gray		Appelez-nous	-
F22B	316118801		Cap-burner,simmer ,gray				$ 37.63
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
