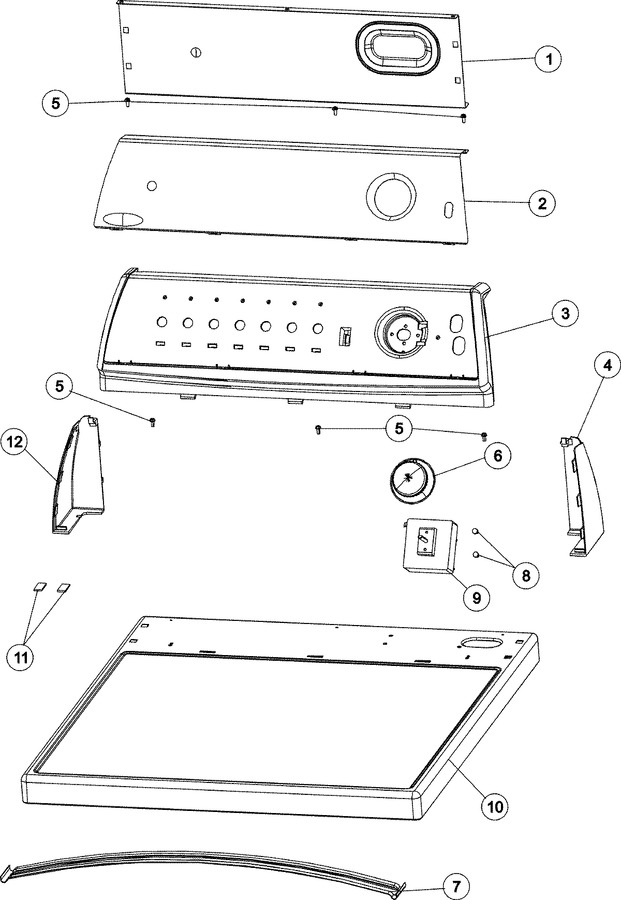

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 37001233 | Shield, Backguard | 10 |
|
- | ||||
| 2 | 31001776 | Control Panel | 10 |
|
- | ||||
| 3 | 21001635 | Frame (wht) | 10 |
|
- | ||||
| 4 | 21001636 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | 56486 | Brace, Top | 10 |
|
- | ||||
| 8 | WP489128 | Screw, No.8-32x3/8`` Hex (Replaces: 37001031) | 10 |
|
$ 9.79 | ||||
| 9 | 37001262 | Timer - Dryer | 10 |
|
- | ||||
| 10 | 37001283 | Top As Pack | 10 |
|
- | ||||
| 11 | WP500121 | Pad, Felt-coin (Replaces: 500121) | 10 |
|
Immediately | $ 7.75 | |||
| 12 | 21001629 | Endcap, Panel (lt-wht) | 10 |
|
- |
