01 - Control Panel
02 - Gas Carrying
03 - Motor & Drive
04 - Tumbler
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

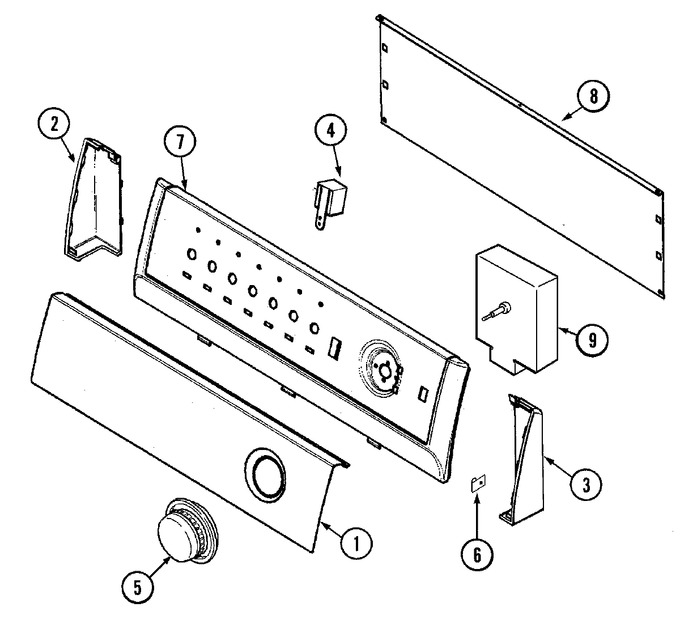

| 1 | 31001403 | Panel, Control | 10 |
|
- | ||||
| 2 | 21001557 | End Cap (alm Lt) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001564 | End Cap (alm Rt) | 10 |
|
- | ||||
| 4 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 5 | 31001393 | Knob And Skirt Assy. (alm) | 10 |
|
- | ||||
| 6 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 7 | 21001560 | Frame (alm) | 10 |
|
- | ||||
| 8 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 8 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 31001108 | Timer | 10 |
|
- | ||||
| NI | 21001419 | Manual, Laundering Tips | 10 |
|
- | ||||
| NI | 31001406 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 31001459 | Manual, Use & Care (span) | 10 |
|
- |
