SELECT A DIAGRAM
New Model Search:

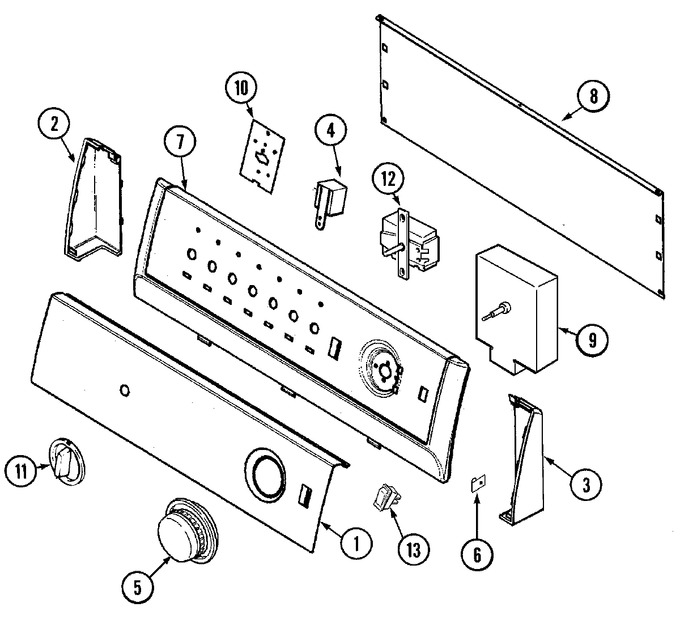

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001384 | Panel, Control | 10 |
|
- | ||||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 4 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 5 | 31001388 | Knob/skirt, Timer (wht) | 10 |
|
$ 25.71 | ||||
| 6 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 7 | 21001553 | Frame | 10 |
|
- | ||||
| 8 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 8 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | WP31001513 | Timer (Replaces: 53-1815) | 10 |
|
$ 340.49 | ||||
| 10 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 11 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 12 | 31001348 | Switch, Temperature | 10 |
|
- | ||||
| 13 | 21001902 | Switch, Rocker (wht W/leads) | 10 |
|
- | ||||
| NI | 21001419 | Manual, Laundering Tips | 10 |
|
- | ||||
| NI | 31001414 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 31001459 | Manual, Use & Care (span) | 10 |
|
- |
