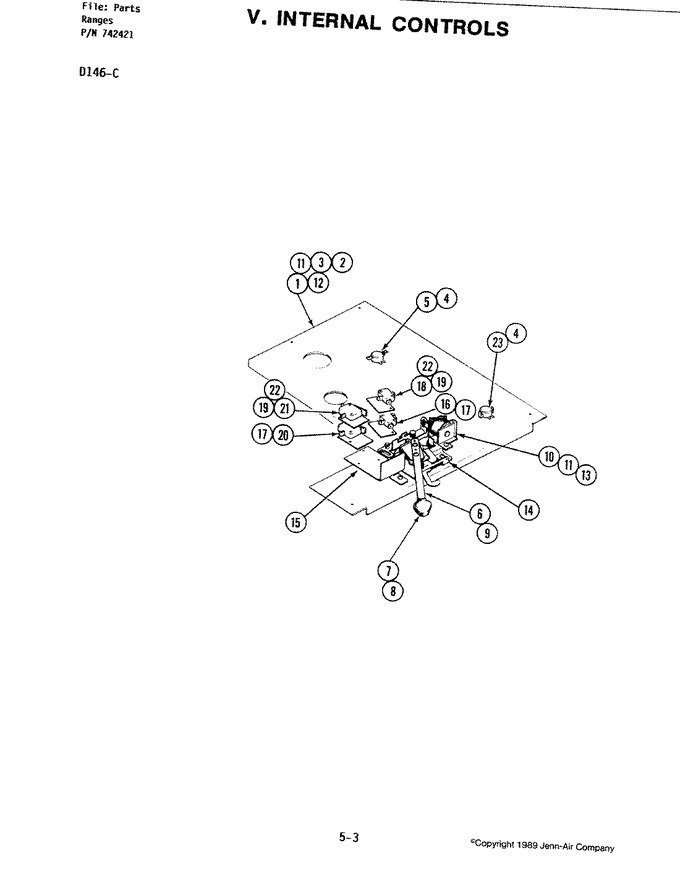

08 - Internal Controls


09 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705003		Frame, Oven Door (blk)	14	Appelez-nous	-
1	704229		Frame, (blk)	11-13	Appelez-nous	-
2	704226		Handle (blk)	11	Appelez-nous	-
3	Y704224		End Cap (blk)	11	Appelez-nous	-
4	W11233072		Screw (blk)   (Replaces: Y704237)	11		Immediately	$ 12.62
5	Y705074		Glass	14	Appelez-nous	-
5	703928		Glass (blk)	11-13	Appelez-nous	-
6	Y704230		Washer	11	Appelez-nous	-
7	Y704231		Screw	11	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	11	Appelez-nous	-
9	715938		Pad, Spacer	14	Appelez-nous	-
9	712567		Liner	14	Appelez-nous	-
9	712189		Liner, Oven Door Weld	11-13	Appelez-nous	-
10	702657		Nut, Push-in	11-13	Appelez-nous	-
10	701643		Nut, Push In	14	Appelez-nous	-
11	WP210720		Rivet   (Replaces: 701662)	11			$ 12.14
12	703804		Pack, Window	11	Appelez-nous	-
13	Y700503		Clip, Retainer	11	Appelez-nous	-
14	702293		Insulation	11	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	11		Immediately	$ 172.53
16	712011		Plug, Oven Door Weld	11	Appelez-nous	-
17	Y700834		Clip	11-13	Appelez-nous	-
17	704487		Clip	14	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	11		Immediately	$ 6.47
19	Y704223		Bumper, Button	11	Appelez-nous	-
20	701660		Insulation, Top	11	Appelez-nous	-
21	702292		Insulation, Bottom	11	Appelez-nous	-
22	701652		Bracket, Stand-off	11	Appelez-nous	-
23	703782		Baffle	11	Appelez-nous	-
NI	Y700446		Washer	11			$ 5.27
NI	Y704488		Screw (black)	14	Appelez-nous	-
NI	Y704819		Retainer, Glass	14	Appelez-nous	-
NI	Y704820		Glass, Baffle	14	Appelez-nous	-
NI	W11233072		Screw   (Replaces: Y707347)	11		Immediately	$ 12.62
NI	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	11			$ 54.82
NI	WPY706189		Screw (blk)   (Replaces: Y704238)	11		Immediately	$ 6.47
