Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 71001378 Plate, Convection Front 1 Appelez-nous -
2 WP1163283 Screw   (Replaces: Y703741) 1 Special Order $ 6.47

3 WP74003976 Washer   (Replaces: 702592) 1 Special Order $ 6.47

4 701711 Wheel, Convection 1 Appelez-nous -
5 701709 Screw, Set 1 Appelez-nous -
6 DE81-03744A Plate, Convection Back   (Replaces: 701712) 1 Special Order $ 312.62

7 DE81-03745A Cover, Motor Front   (Replaces: 701713) 1 Special Order $ 251.40

8 Y700601 Plate, Motor Mount 1 Appelez-nous -
9 Y703035 Motor, Convect 1 Appelez-nous -
10 WP488234 Screw   (Replaces: 708861) 1 Special Order $ 6.07

11 WP12990527 Screw   (Replaces: Y708955) 1 In-Stock Immediately $ 7.15

12 715910 Washer, Lock 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

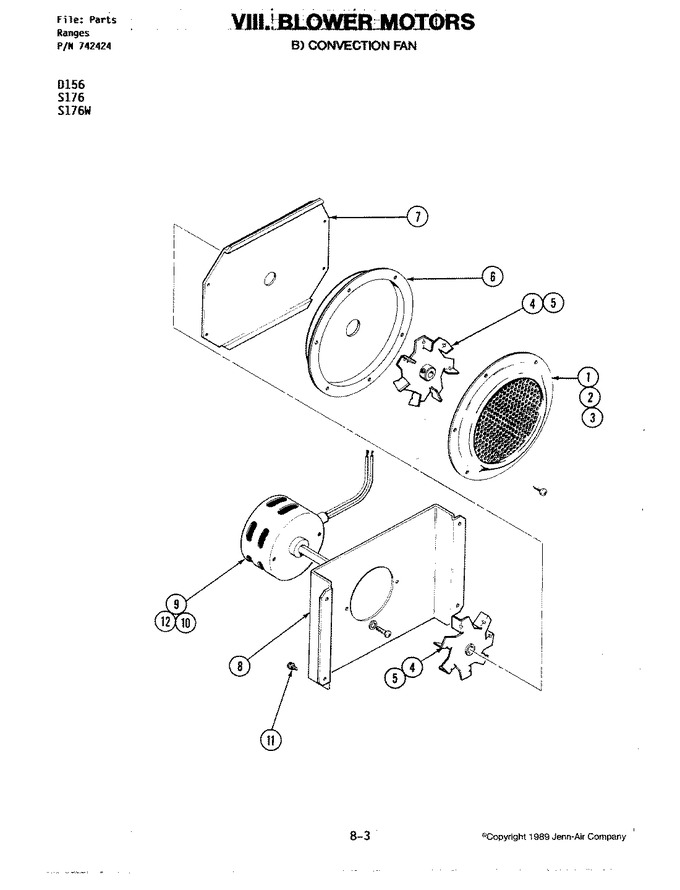

Diagram for D156
