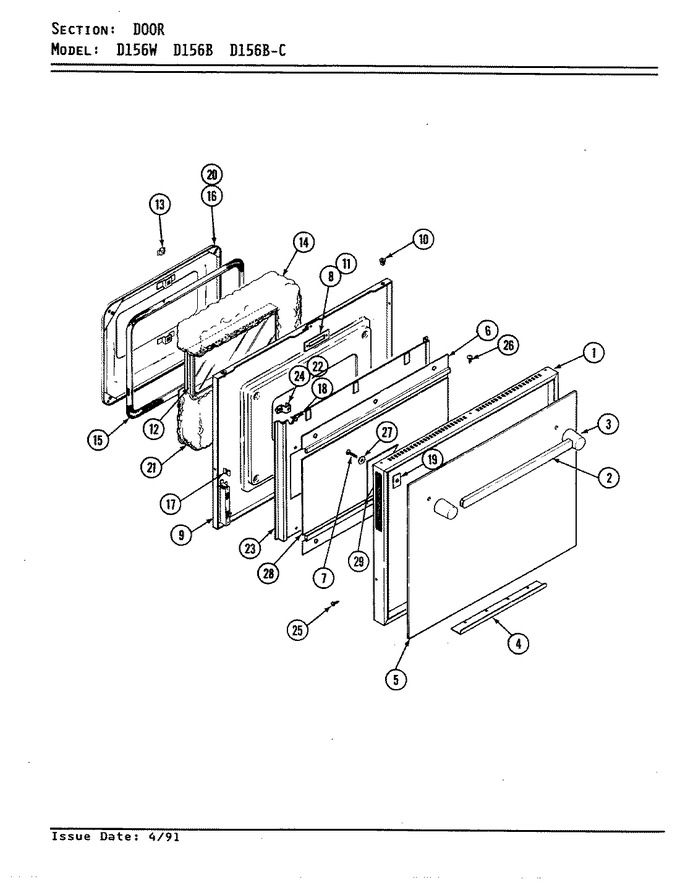

06 - Door (d156b & D156w)


07 - Internal Controls (d156b & D156w)


08 - Liner (d156b & D156w)


09 - Top Assembly (d156b & D156w)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705134		Frame	1	Appelez-nous	-
2	704475		Handle (wht)	1	Appelez-nous	-
3	Y704454		End Cap (wht)	1	Appelez-nous	-
4	704744		Rail, Glass	1	Appelez-nous	-
4	WP74004005		Screw   (Replaces: 707365)	1			$ 6.95
5	704742		Glass	1	Appelez-nous	-
5	704491		Tape, Foam	1	Appelez-nous	-
6	Y704819		Retainer, Glass	1	Appelez-nous	-
7	704963		Screw	1	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
9	712567		Liner	1	Appelez-nous	-
9	715870		Screw	1	Appelez-nous	-
9	Y703449		Washer	1	Appelez-nous	-
10	701643		Nut, Push In	1	Appelez-nous	-
10	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
11	Y704230		Washer	1	Appelez-nous	-
12	701648		Window Pack	1	Appelez-nous	-
13	705404		Clip	1	Appelez-nous	-
14	702293		Insulation	1	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	1		Immediately	$ 172.53
16	712011		Plug, Oven Door Weld	1	Appelez-nous	-
17	704487		Clip	1	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
19	701660		Insulation, Top	1	Appelez-nous	-
19	Y704489		Bushing	1	Appelez-nous	-
20	704805		Gusset----na	1	Appelez-nous	-
21	702292		Insulation, Bottom	1	Appelez-nous	-
22	701652		Bracket, Stand-off	1	Appelez-nous	-
22	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
23	703782		Baffle	1	Appelez-nous	-
24	Y704820		Glass, Baffle	1	Appelez-nous	-
25	704745		Screw, Flat	1	Appelez-nous	-
26	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
