SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Unit


06 - Shelf

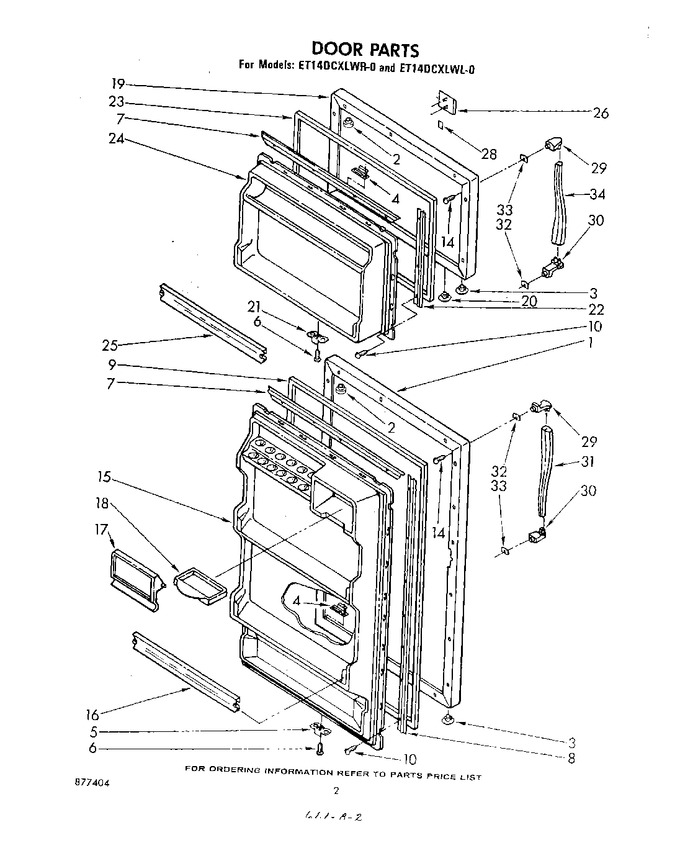

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944073		Refrigerator Door Panel (r.h. Swing) (almond (l.h. Swing))		Appelez-nous	-
1	944075		Refrigerator Door Panel (r.h. Swing) (white)		Appelez-nous	-
1	944076		Refrigerator Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
1	944078		Refrigerator Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
1	944077		Refrigerator Door Panel (r.h. Swing) (harvest Gold)		Appelez-nous	-
1	944079		Refrigerator Door Panel (r.h. Swing) (almond)		Appelez-nous	-
1	944069		Refrigerator Door Panel (r.h. Swing) (white)		Appelez-nous	-
1	944070		Refrigerator Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
1	944072		Refrigerator Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
1	944071		Refrigerator Door Panel (r.h. Swing) (harvest Gold)		Appelez-nous	-
2	509929		Cap, Hinge		Appelez-nous	-
3	989878		Hole Plug (2) (coffee)		Appelez-nous	-
3	989880		Hole Plug (2) (avocado)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	989879		Hole Plug (2) (harvest Gold)		Appelez-nous	-
4	943185		Tap Plate		Appelez-nous	-
5	944036		Bracket, Door Stop		Appelez-nous	-
6	488930		Screw (repair)		Appelez-nous	-
6	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
7	935759		Retainer Gasket, Top & Bottom (2)		Appelez-nous	-
8	935760		Retainer, Gasket Side (2)		Appelez-nous	-
9	2188445A		Door Gasket, Magnetic   (Replaces: 942268)				$ 169.16
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
10	WP489069		Screw, 8 X 1/2   (Replaces: 489089)			Immediately	$ 7.07
14	488818		Screw (2)				$ 42.82
15	943096		Interior Door Panel (refrigerator)		Appelez-nous	-
16	939019		Trim, Door Shelf		Appelez-nous	-
17	937146		Compartment Door		Appelez-nous	-
18	520747		Tray, Butter		Appelez-nous	-
19	944087		Freezer Door Panel (r.h. Swing) (almond (l.h. Swing))		Appelez-nous	-
19	944088		Freezer Door Panel (r.h. Swing) (white)		Appelez-nous	-
19	944090		Freezer Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
19	944091		Freezer Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
19	944092		Freezer Door Panel (r.h. Swing) (harvest Gold)		Appelez-nous	-
19	944093		Freezer Door Panel (r.h. Swing) (almond)		Appelez-nous	-
19	944082		Freezer Door Panel (r.h. Swing) (white)		Appelez-nous	-
19	944084		Freezer Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
19	944085		Freezer Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
19	944086		Freezer Door Panel (r.h. Swing) (harvest Gold)		Appelez-nous	-
20	941750		Hole Plug		Appelez-nous	-
21	944035		Bracket, Door Stop		Appelez-nous	-
22	935775		Retainer, Gasket Side (freezer)		Appelez-nous	-
23	WP2188456A		Door Gasket, Magnetic   (Replaces: 942271)				$ 221.56
24	943097		Interior Door Panel (freezer)		Appelez-nous	-
25	935777		Trim, Door Shelf		Appelez-nous	-
26	945119		Nameplate		Appelez-nous	-
28	991259		Tape Strip		Appelez-nous	-
29	982947		Handle, End		Appelez-nous	-
30	982948		Handle, End		Appelez-nous	-
31	982978		Handle, Center		Appelez-nous	-
32	941917		Shim, Top		Appelez-nous	-
33	941918		Shim, Bottom		Appelez-nous	-
34	877404		List, Parts		Appelez-nous	-
34	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
34	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
34	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
34	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
34	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
34	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
34	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
34	833938		Kit, Terminal Connector				$ 7.26
34	938399		Service & Wiring Sheet		Appelez-nous	-
34	942272		Consumer Buy Guide		Appelez-nous	-
34	943001		Energy Guide		Appelez-nous	-
34	942261		Guide, Use & Care		Appelez-nous	-
34	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
34	982942		Handle, Center		Appelez-nous	-
34	350942		Primer White (13 Oz. Spray Can)				$ 80.69
34	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
34	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
34	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
34	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
34	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
34	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
34	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
34	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
34	261891		Enamel, Harvest Gold (1 Qt. Uncut)		Appelez-nous	-
34	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
34	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
34	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
34	261890		Xenamel, Harvest Gold (13 Oz. Spray Can)		Appelez-nous	-
34	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
34	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
34	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
34	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
34	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
34	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
34	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
